Product Overview

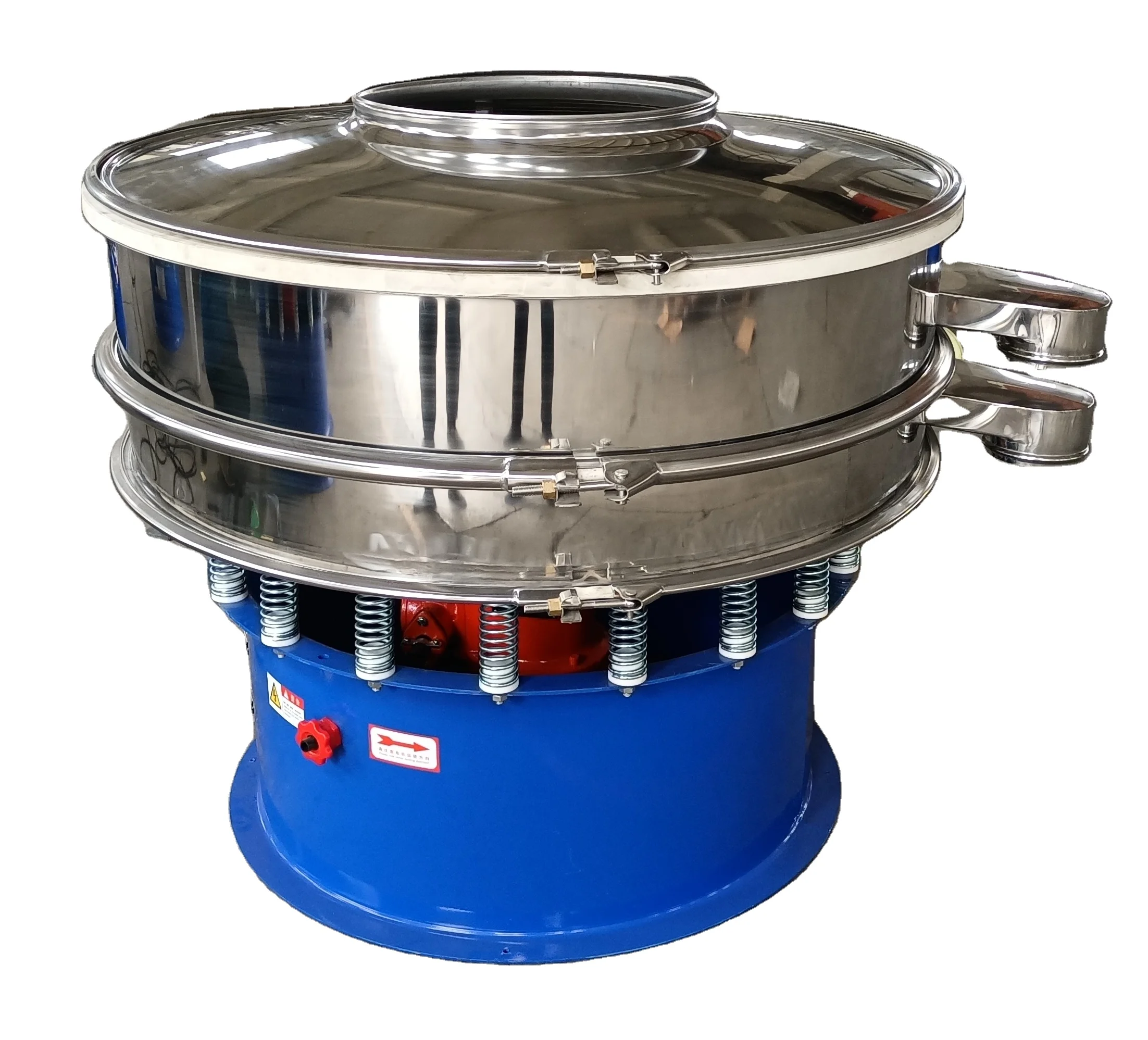

Garnet tumbler screening machine
The design of the circular tumbler screen is a high-efficiency screening machine specially designed to meet the needs of
large-volume, higher-screening manufacturers. The simplest screening is to use both eyes to screen with both hands. Simulation, it
is currently the most effective simulation of the effective principle of manual screening movement (screening accuracy,
efficiency, screen life is 5-10 times that of conventional round screen), which meets all fine and ultra-fine powders and
particles Shaped materials, especially suitable for difficult materials.
large-volume, higher-screening manufacturers. The simplest screening is to use both eyes to screen with both hands. Simulation, it
is currently the most effective simulation of the effective principle of manual screening movement (screening accuracy,
efficiency, screen life is 5-10 times that of conventional round screen), which meets all fine and ultra-fine powders and
particles Shaped materials, especially suitable for difficult materials.
FEATURES AT A GLANCE
Applicable industry of tumbler screen:
Chemistry, food and spices, plastics, mining, medicine, wood and plywood, metallurgy, rubber, feed, fertilizer, sugar and salt
industry, recycling industry.
Chemistry, food and spices, plastics, mining, medicine, wood and plywood, metallurgy, rubber, feed, fertilizer, sugar and salt
industry, recycling industry.
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Model | Availability of screening area (m*m) | Layers | Grain size(mm) | Double amplitude (mm) | Power (kw) | Process capacity (t/h) |
YBS-1000 | 0.71 | 1~3 layers | 1~10 | 5~8 | 1.5kw | 8~15 |
YBS-1200 | 1.11 | 1~3 layers | 1~10 | 5~8 | 2.2kw | 15~30 |
YBS-1600 | 1.83 | 1~4 layers | 1~10 | 5~8 | 2.2/4kw | 25~50 |
YBS-2000 | 2.62 | 1~5 layers | 1~10 | 5~8 | 2.2/4kw | 30~60 |
YBS-2200 | 3.46 | 1~5 layers | 1~10 | 5~8 | 3/4KW | 35~60 |
YBS-2600 | 5.31 | 1~5 layers | 1~10 | 5~8 | 5.5KW | 45~60 |
PRODUCT CONFIGURATION
ABB brand motor
High quality rubber spring
High elastic silicone ball
SIMILAR PRODUCTS
FAQ
The proper selection of the tumbler vibrating screen depends on the material, number of layers, every mesh size, capacity,
material moisture, viscous and corrosive etc:
1. Screening material : _____
2. How many layer(s):_______
3. Every mesh size:______ mesh . ______ mesh.______ mesh...
4. Capacity: :________t/h
5. Moisture, viscous, corrosive ________
6. Voltage:______V, Frequency:______HZ, 3 phase
7. Mild steel(Q235A), SS304, or SS316
material moisture, viscous and corrosive etc:
1. Screening material : _____
2. How many layer(s):_______
3. Every mesh size:______ mesh . ______ mesh.______ mesh...
4. Capacity: :________t/h
5. Moisture, viscous, corrosive ________
6. Voltage:______V, Frequency:______HZ, 3 phase
7. Mild steel(Q235A), SS304, or SS316
