Jewelry tools grinder goldsmith soldering tool gold smith laser cutting machines for metal stainless


Цена:21 500,00 $ - 22 500,00 $*
Стоимость в USD (на сегодня):Узнать


Описание и отзывы


Jewelry tools grinder goldsmith soldering tool gold smith laser cutting machines for metal stainless steel

Laser cutting machines

Fiber Laser Cutting Machine Advantages:


1)  Fiber laser cutting is the fastest process for thin sheet metal.

2)  A “clean cut” surface quality is obtained.

3)  Reflective materials like aluminium,copper and brass can be cut with ease.

4)  Parts process cost is very low.

5)  Low maintenance costs.

6)  Consumable part cost is low. The only parts that need to be changed are nozzles, ceramics and

      protection glasses over long periods. There are no other consumable costs.

7)  Resonator life is over 100,000 working hours.

8)  Double ball screw close-loop system and imported open-type CNC system, ensure high

     accuracy and high working efficiency during high speed cutting.

9)  Standard collocation of 2KW fiber laser and optional 500W-4000W fiber laser

       Standard collocation of 500W fiber laser and optional 1000W IPG or n-light fiber.

       Low operating and maintenance costs. Achieve long-term return on investment and revenue maximization.

10) Enclosure design conforms to CE standard for reliable and safe processing.

       Pallet changer is convenient for material uploading and unloading, improving efficiency.

       Open structure is easy and convenient for material uploading and unloading.

       Drawer collecting device makes receiving materials more convenient.

Laser cutting machiness


Fiber Laser Cutting Machine Technical Parameters

Laser TypeFiber Laser
Laser BrandIPG/Raycus
Laser Power500W(750W/1000W/2000W/3000W/4000W Optional
Working Area1500mm*3000mm, 1300mm*2500mm, 2000mm*4000mm Optional
Working TableFixed Working Table
Control SystemPMAC, full-closed loop servo control
Driving ModeDouble gear rack driving
Positioning Accuracy0.05mm
Protection SystemEnclosure protection
Cutting HeadPrecitec/Laser Mech
Power SupplyAC380V±5% 50/60Hz
Total Power7kw~11kw
Standard CollocationMetal Nesting Software, Dural-pressure, gas route of 3 kind gas sources, dynamic focus, remote controller, etc
SoftwareCutMax Laser Cutting Software or PA8000 software, Metal Nesting Software
Supported FormatPLT, DXF, BMP, AI, DST, DWG, etc


Product Cutting Capcity Details:

Laser cutting machines

Laser cutting machines

Laser cutting machines

Laser cutting machinesFiber Laser Cutting Machine

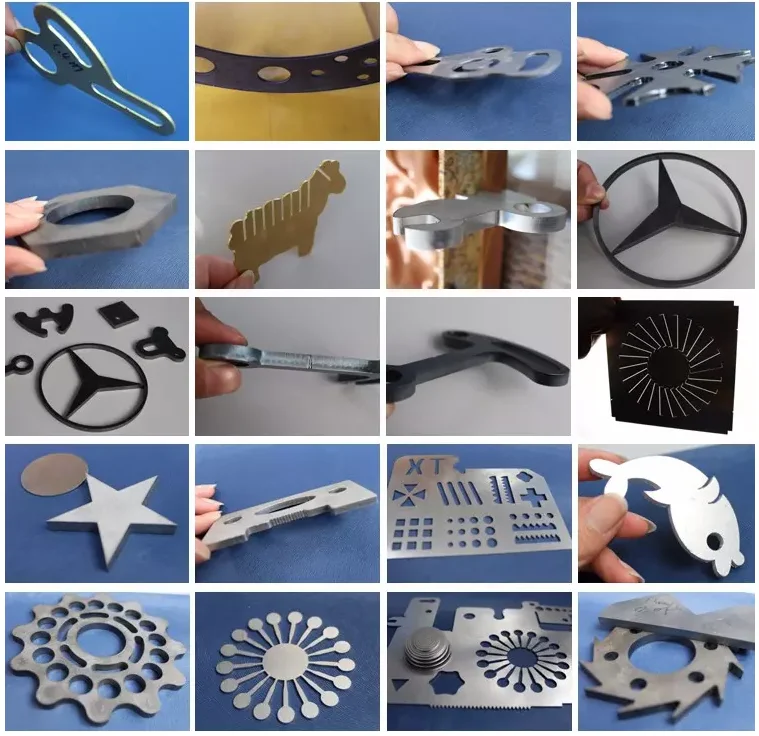

Cutting Samples:

Fiber Laser Cutting Machine

Fiber Laser Cutting Machine


Company Profile


Our Workshop

Our Exhibition



01: I do not know about this machine, is it suitable for me to clean my work piece ?

A:  We will help you and give you the suggestion, you can share us what material of your work piece and what impurity will you clean and the impurity thickness.

02: What's package, will it protect the products ?

A: We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.

03: What's delivery time?

A:Normally, the lead time is within 7 working days after receiving the payment.

04: What payment terms can you accept ?

A: We can receive the payment by T/T  and Trade Insurance.
