Производитель Sunchonglic печатная плата для индукционной плиты Комплект печатной
- Категории: Induction Cookers >>>
- Поставщик: Guangzhou,Golden,Hongfa,Electronic,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product application

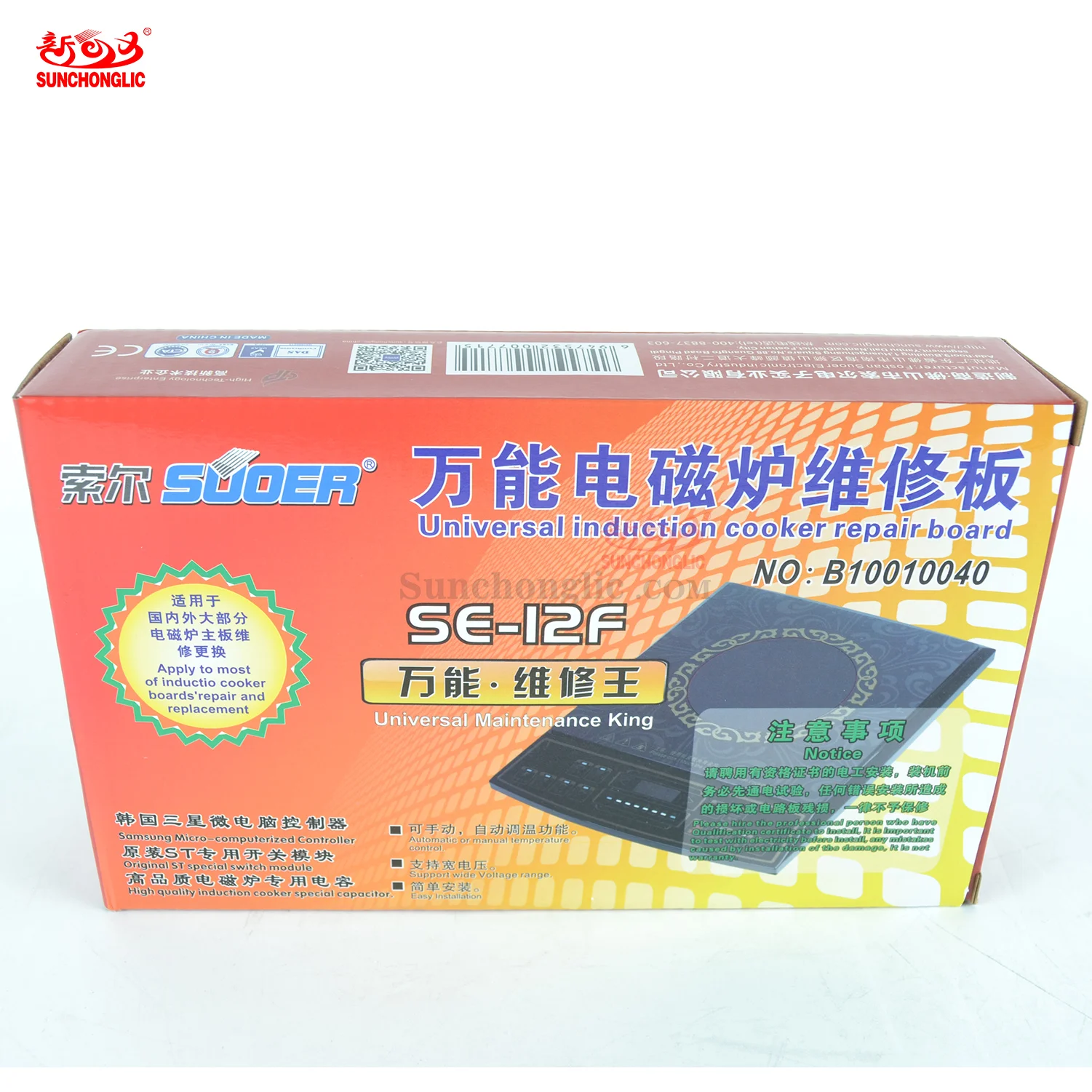

Product NO:B10010040

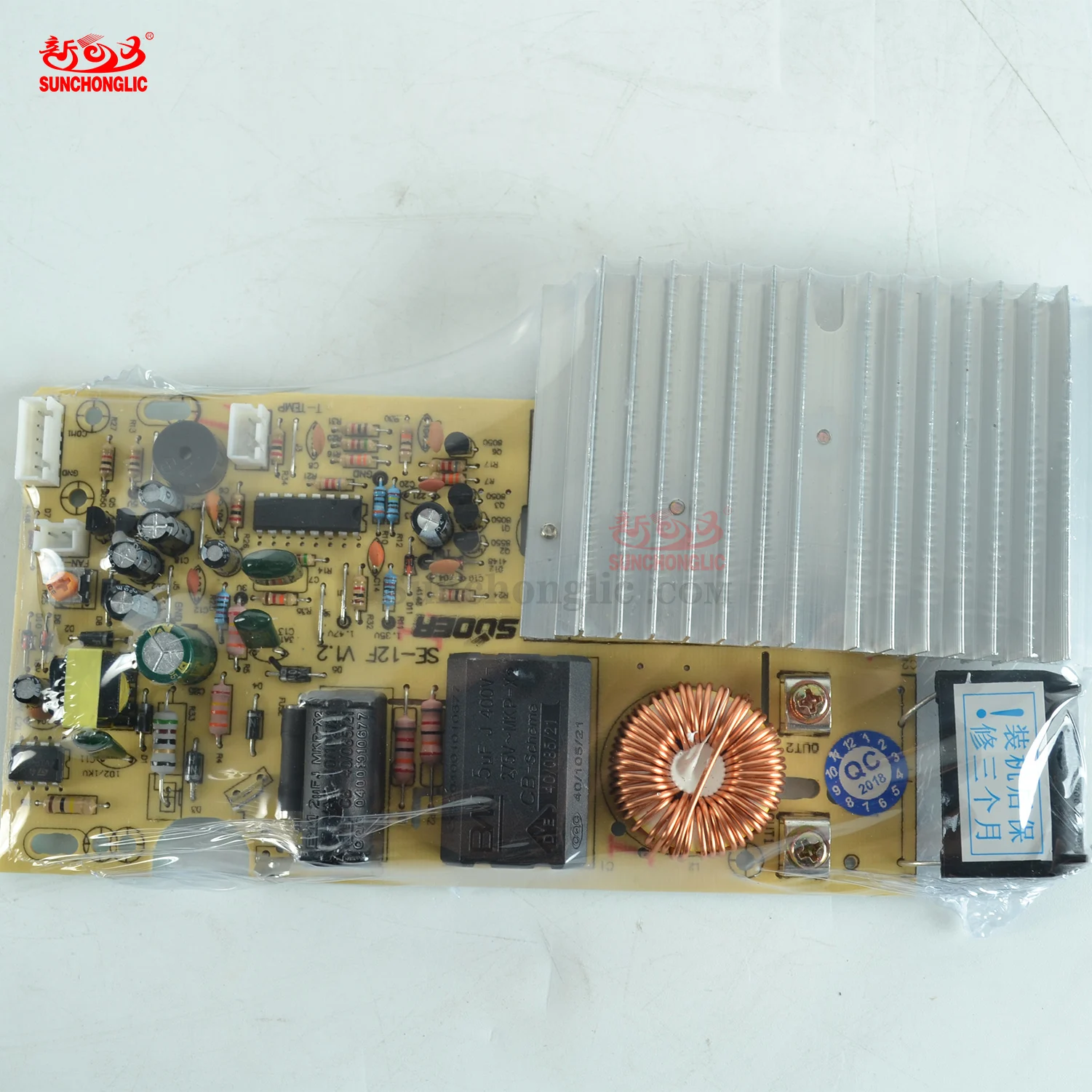

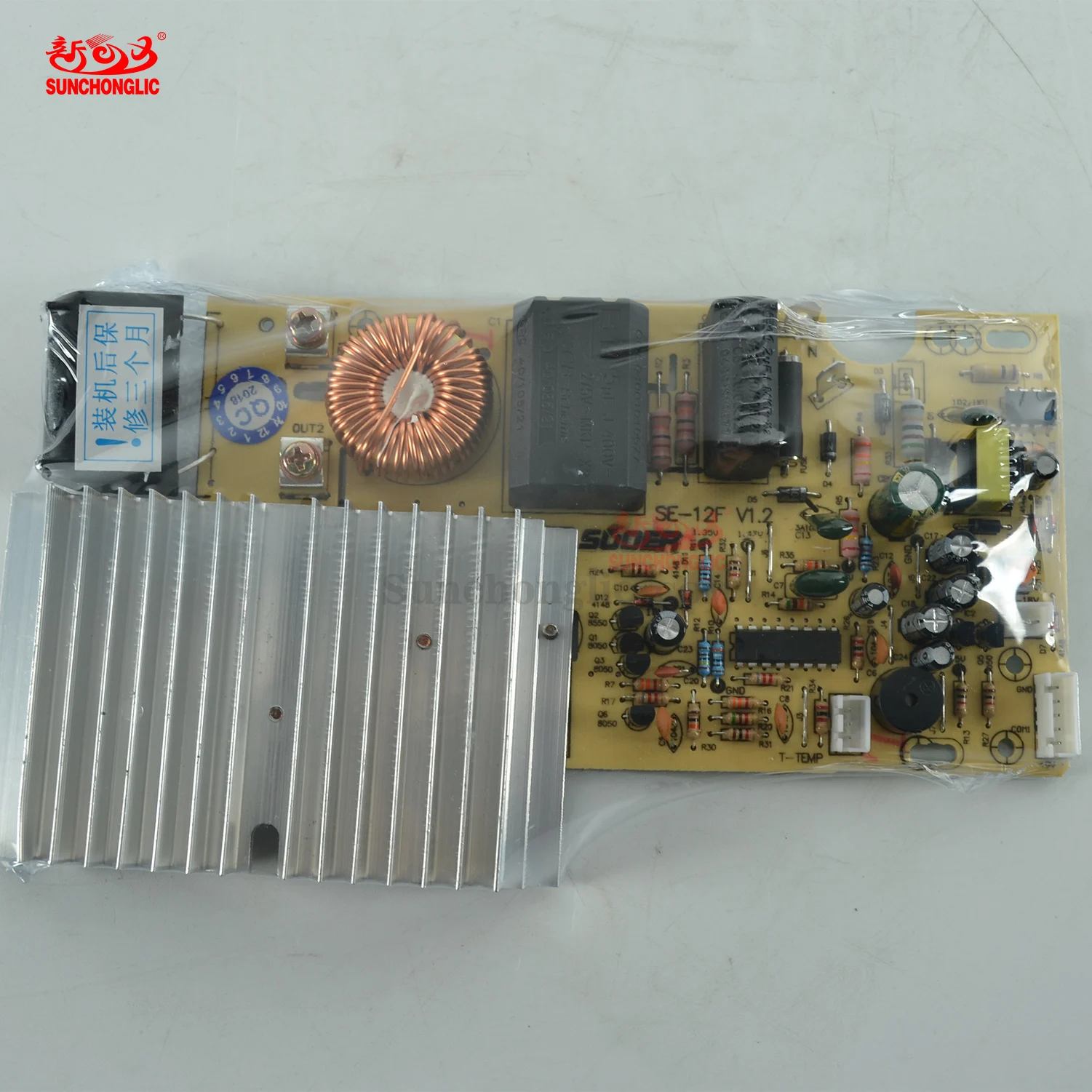

B10010040 induction cooker control board is universal repair king, suitable for most electromagnetic oven mainboard repair and replacement. It can be replaced directly, saving workload and time.
- Deft Design
- The shape of the main board is exquisite.
- Parts are welded.
- The outline size is only 200*105mm.
- Easy to install.
- Features
- 1. Support voltage: 220v.
- 2. Advantage:Ulti-position firepower adjustment,eightfold safety protection,efficient cooling system,digital LED display,smart cooking function,precise timing,intelligent control.
- 3. Six smart menu: hot pot, cooking, porridge, water heating, steamed stew, soupand so on.
- 4. Smart fire function: operating temperature can up to max power in a moment under notoverload.
- 5. Multiple safety protections: over-current, over-heating, incorrectly placed protection, high-voltage protection, low-voltage protection and so on.
- 6. Six simple operationg functions: water heating, porridge, steaming, hot pot, cooking.
Adjust temperature function.
You can make an appointment for time to open or close.
Support wide Voltage range.
Samsung micro-computerized comtroller.
High quality induction cooker special capacitor.
Original ST special switch module.
| Protection | Fault Code | Fault Introduction |
| No Pot Warning | E0 | The buzzer rings and it will recover automatically after fault removed. |
| Low Voltage Protection | E1 | The buzzer rings and it will recover automatically after fault removed. |
| High Voltage Protection | E2 | The buzzer rings and it will recover automatically after fault removed. |
| IGBT Thermistor Broken or Not Set OK | E4 | The buzzer rings hurriedly. It can be turned on after it turn off and solve the problem. |
| Bottom Over Temperature | E5 | The buzzer rings hurriedly. It can be turned on after it turn off and solve the problem. |
| Bottom Thermistor Broken or Not Set OK | E6 | The buzzer rings hurriedly. It can be turned on after it turn off and solve the problem. |
| Furnace Bottom Thermistor Failure | E7 | The buzzer rings hurriedly. It can be turned on after it turn off and solve the problem. |
| Communication Failures | E0A or E0B | Fault code display. It can be turned on after it turn off and solve the problem. |
| IGBT Over Temperature | Normal Display | Stop Heating, it will recover automatically after the temperature recover |
| Over Current Protection | Normal Display | Stop heating, after a few seconds will recover |
Product Display
PCB buyer feedback
More Products
Certificate
Company Information
FAQ
1. May I take some samples to test before placing the order ?
Answer:Yes,but customers need to pay for the sample fees and express fees,and it will be returned when next order is confirmed.
2. How long can you offer the samples?
Answer:1~5 days after the deposit payment is confirmed.
3. What's your payment terms for sample?
Answer:You can pay via T/T
4. What’s the price terms can you offer for us?
Answer:We can accept EXW,FOB,CIF and so on.
5. Do you have any certifications for your products?
Answer:We have ISO9001:2000,CE,RoHS,certifications for all of our products.
6. Where is your main market for your products?
Answer:Most of our Suoer brand products are exported to Southeast Asia,Africa and Mid East.
