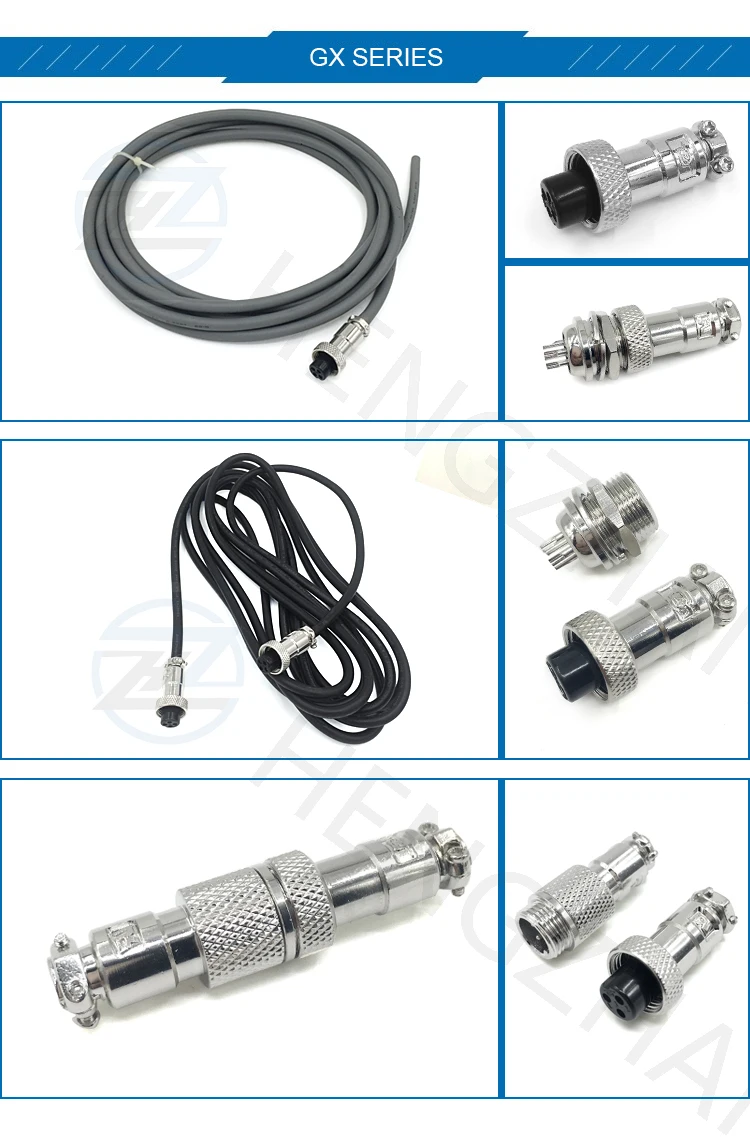

DIY Color-Coated Detachable Cable Aviation Shiny Red Aviator Color GX12 GX16 Red 4Pin 5Pin Connector Custom GX16
Product Description
GX series connectors known as aviation connector, are now widely used in aviation, navigation, date acquisition systems, Inclinometer, computer automation measurement and control systems,mechnical equipment, audio&video, communications, automotive and other industries.
Coupling: Threaded coupling
Shell material: Zinc alloy with nikelplate
Insert material: Bakelite
Contact material: Copper (silverplated/gold)
Termination: Solder
Mating cycle: 500 times pull and push
Temperature range: -20℃~ +85℃
Cable diameter: 7.55mm~8.55mm
Pin number: 2, 3, 4, 5, 6, 7, 8, 9, 10, 12 pin
| Technology parameter | |||||||||
| NO.of contacts | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| Rated current/voltage | 7A-125V | 7A-125V | 7A-125V | 7A-125V | 5A-125V | 5A-125V | 5A-125V | 5A-125V | 5A-125V |
| Operation limit voltage(AC.V.rms) | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 |
| Withstanding voltage(AC.V.rms) I minute | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Insulation resistance(MΩ MIN.) at DC 500V | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Contact resistance (MΩ MAX.) AT DC 1A | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Solder cup mouth aperture | 1.6 | 1.6 | 1.6 | 1.2 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 |
| Solder inter diameter | 2.45 | 2.45 | 2.45 | 2 | 1.15 | 1.15 | 1.15 | 1.15 | 1.15 |

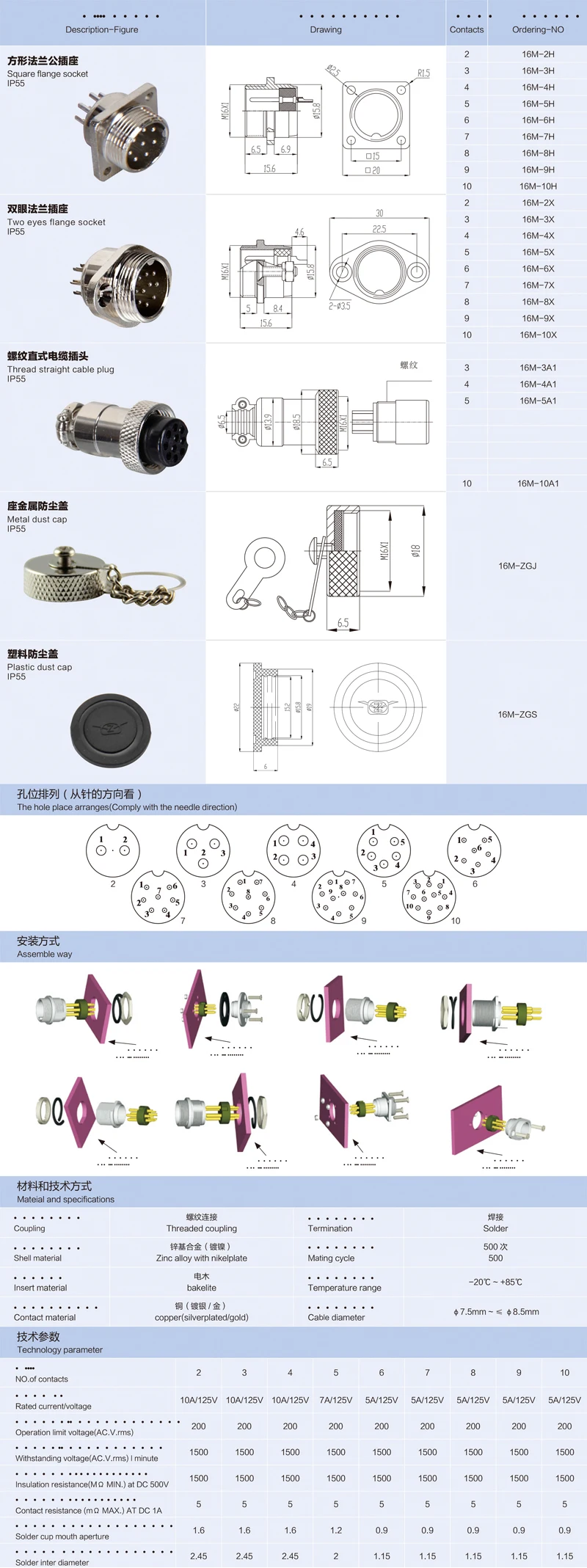

Size
Packaging & Shipping
Packaging Details: GX12 gx16 connector will be packed in one small bag and then put in one box. If you need custom package, we will do as your requirest.
Delivery Detail: About 7 workdays after payments.
Our Services
We supply GX series connectors, heavy duty connectors and mil connectors and other many kinds of connectors. If you need cable harness, we also can supply harness processing, you just need let us know the spec of the cable and the connectors, we will give you a cable harness drawing.
