Product Description
Battery self piercing rivet gun
The hand-held self-piercing riveting machine adopts lithium battery charging method, which is very portable, and the pressure is adjustable from 2 to 4.5 tons. The charging time is about 2 hours, and the jaws can be rotated 350 degrees. The method of pressing rivets is adopted. The force output by the ejector rod of the oil cylinder acts on the riveting die and the rivet to form a plastic inlay between the two plates to be riveted, which is interlocked and very firm.
The characteristics of the electric self-piercing rivet riveting machine are: portability, simple operation, high forming rate, no damage to the surface coating of the riveted sheet, no punching, wide application range, etc., one-time forming, good waterproofness, and can connect metal and non-metal Material, multi-layer riveting, different matrix combinations, etc.
Portable electric self-piercing riveting machines are widely used in automobile sheet metal repair, metal plate processing, high-speed trains, fans and other industries. Specially solve the riveting process problems between aluminum alloy, composite materials, and steel materials, which can greatly improve production efficiency, improve product quality, control costs, and create more economic benefits.
Advantage:
·Electric hydraulic operation, easy to carry, simple operation
·C-type clamp body of various sizes can be matched
·360° freely rotating pliers body can be applied to a variety of angle applications
·Continuously adjustable riveting force
Automatically reset and automatically turn off the motor after completing the task
·The rivets can be removed by special tooling
Specification
No | Item | Specification | No | Item | Specification |
1 | Driving mode | Electro-hydraulic | 6 | Working temperature | -10℃~40℃ |
2 | Pressure | 30~60Kn adjustable | 7 | Time per riveting | 3~5s/time |
3 | Motor | 18V DC | 8 | Work time/fully charged | 130~350 time |
4 | Power | AC 100V-240V 50-60HZ | 9 | Noise | 75dB |
5 | Charging time | 1 hour | 10 | Weight/set | 5kg |
Customize

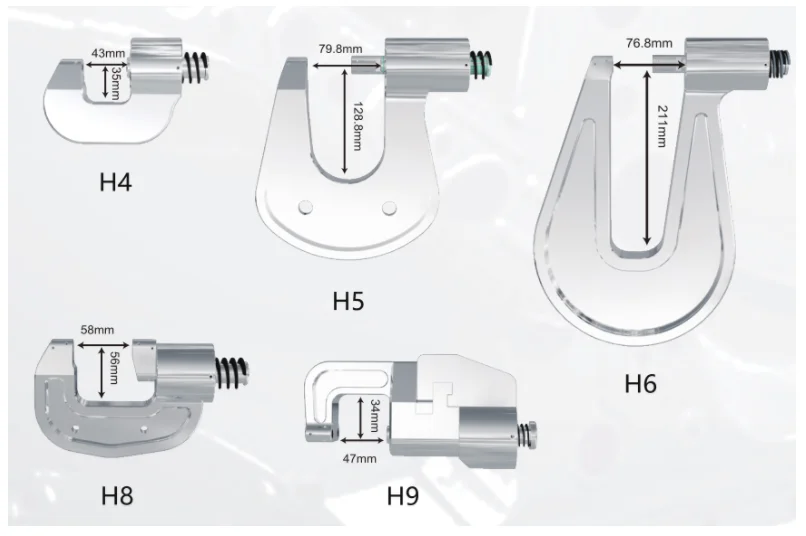

We can customize products with different jaw widths according to customer needs
