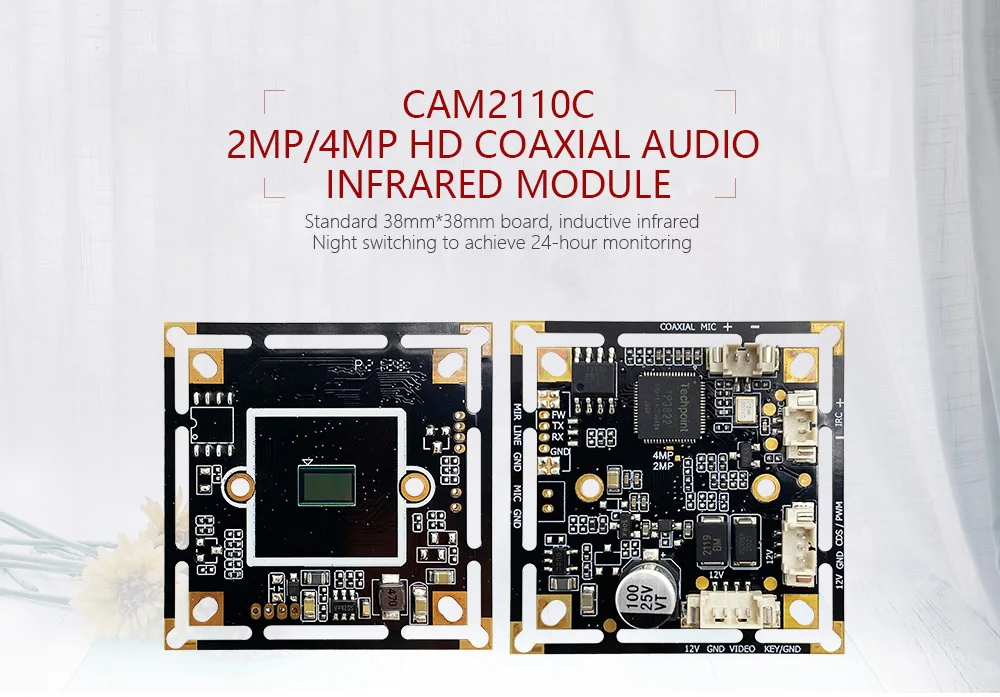

PRODUCT DESCRIPTION
Features
* TP 3822 chip；
* 2MP pixel、1/2.9″ target surface、standard 38mm*32mm plate；
* Support day and night switching of inductive infrared to realize 24-hour monitoring；
* Standard coaxial control；
* Support stvi function,which can achieve video format switching foiiowing DVR,image linkage processing,DVR upgrading camera software (need TS back-end).
* 2MP pixel、1/2.9″ target surface、standard 38mm*32mm plate；
* Support day and night switching of inductive infrared to realize 24-hour monitoring；
* Standard coaxial control；
* Support stvi function,which can achieve video format switching foiiowing DVR,image linkage processing,DVR upgrading camera software (need TS back-end).
Product Paramenters
Specification and model | CAM 2110C |
Main chip | TP3822 |
Sensor | 2MP pixel，OV02G10 1/2.9″ CMOS sensor |
Signal mode | AHD/TVI/CVI/CVBS |
Effective pixel | 1920(H)×1080P(V) |
Standard | 2MP：25 frames per second / 30 frames per second； |
Coaxial communication | Coaxial function support |
HD switch | Support OSD/KEY/code switching/single/UTC mode switching |
IR-CUT drive | DC 3.3V Plus drive |
IR-LED drive | External aignal input controls IRC and B/W switching |
Menu function | OSD |
Language | ENGLISH / CHINESE |
Color to black | Support synchronous color to black function |
Image function | Support software trigger and hardware trigger |
Noise reduction | 2D/3D NR ON |
White balance | Automatic white balance |
Day / Night | Auto / Color / Exterior / Black and white |
Input power | DC8-16V / DV12-55mA |
Protection | Anti lightning / anti reverse design of 2000V video port |
Wide dynamic | Digital wide dynamic / automatic shutter |
Gamma correction | 0.45 |
Video output | 1.0Vp-p, 75Ω |
Minimum illumination | F1.2/0.03Lux/200mV |
Intelligent infrared | Support intelligent infrared / infrared antiriot |
Size | 38-38/32-32mm |
Power waste | <1W |

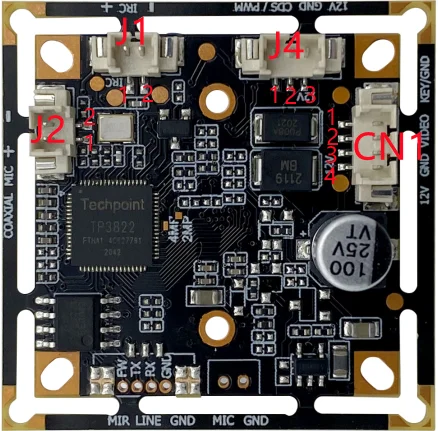

CN1 (Interface clearance/ 1.25 mm)
1. Ground point (customizable key function)
2. Video output
3. Ground point
4. DC 12V input
J4 (interface clearance/1.25 mm)
1. Infrared / White light output
2. Ground point
3. DC 12V output
J1 (interface clearance/1.25 mm)
1. IRC drive
2. IRC drive
3. Ground point
4. DC 12V input
J4 (interface clearance/1.25 mm)
1. Infrared / White light output
2. Ground point
3. DC 12V output
J1 (interface clearance/1.25 mm)
1. IRC drive
2. IRC drive
J2 (interface clearance/1.25 mm)Coaxial audio
1. Ground point
2. Analog audio output
HangZhou TaoShi Technology Co., Ltd. was established in November 2012. It is an excellent enterprise focusing on the design of video surveillance products. The company's main products include XVR five-in-one series, AHD five-in-one series, and H.265 NVR and IPC. The company has a strong R&D team, the team members are vigorous, active, united, harmonious, and endowed with innovative spirit, and constantly expand new knowledge fields, gaining knowledge and accumulating, accumulate and develop！As a young company, TaoShi Technology adheres to the corporate spirit of "Integrity, Responsibility, Efficiency, and Pursue Excellence". It is customer-centric, provides the most comprehensive technical support, assists customers in expanding the market, and strives to create a win-win cooperation.
333
Q1: Are you a factory?
A: Yes, we have our own factory in Shenzhen. Welcom to visit our company if you have free time.
Q2: Do you provide free sample?
A: Yes, we could offer free sample for some items, but do not pay the cost of freight.
Q3: Can I make my own logo on it?
A: Of course. We suppot OEM and ODM service, including color, logo, package, size etc.
Q4: What's your MOQ?
A: For orders supply from stock, the MOQ is 1 pcs. For OEM or ODM orders, the MOQ is 500 pcs.
Q5: Can I add or delete items from my order if I change my mind?
A: Yes, but you need to tell us asap. If your order has been done in our production line, we cannot change it. It is about 2 days after confirming the order.
INTERFACE DESCRIPTION
Used in many occasions
Connector Function
