Product Overview

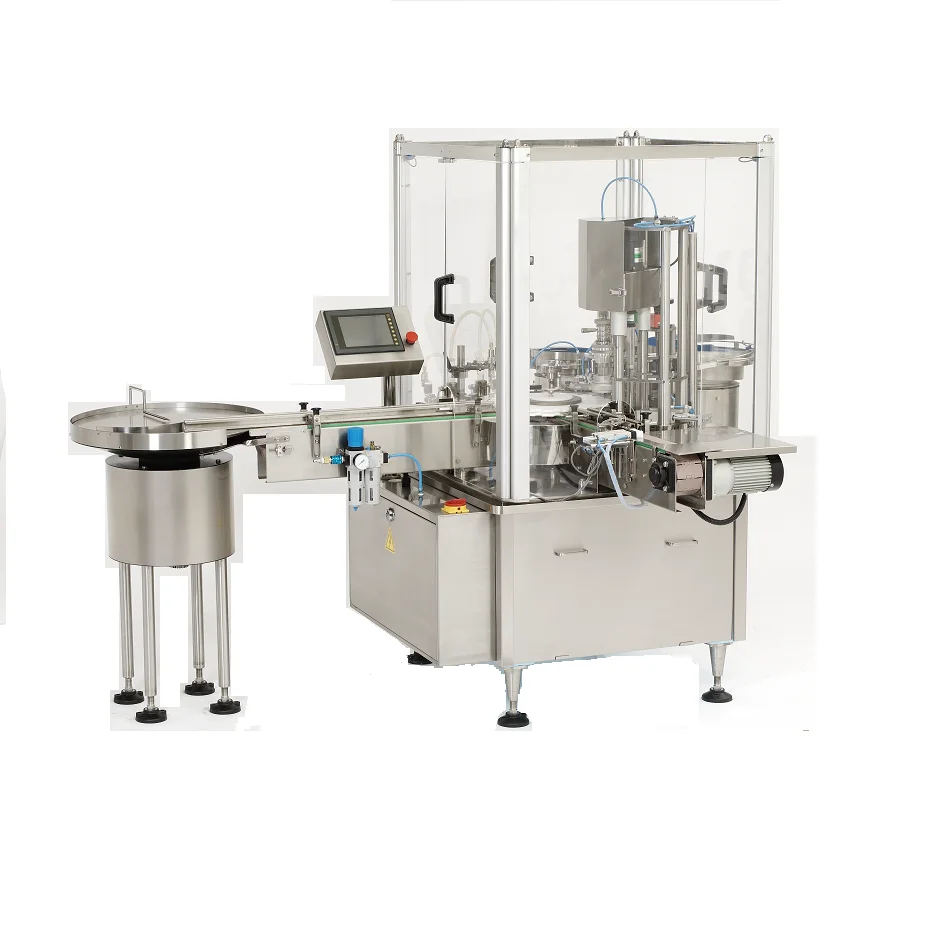

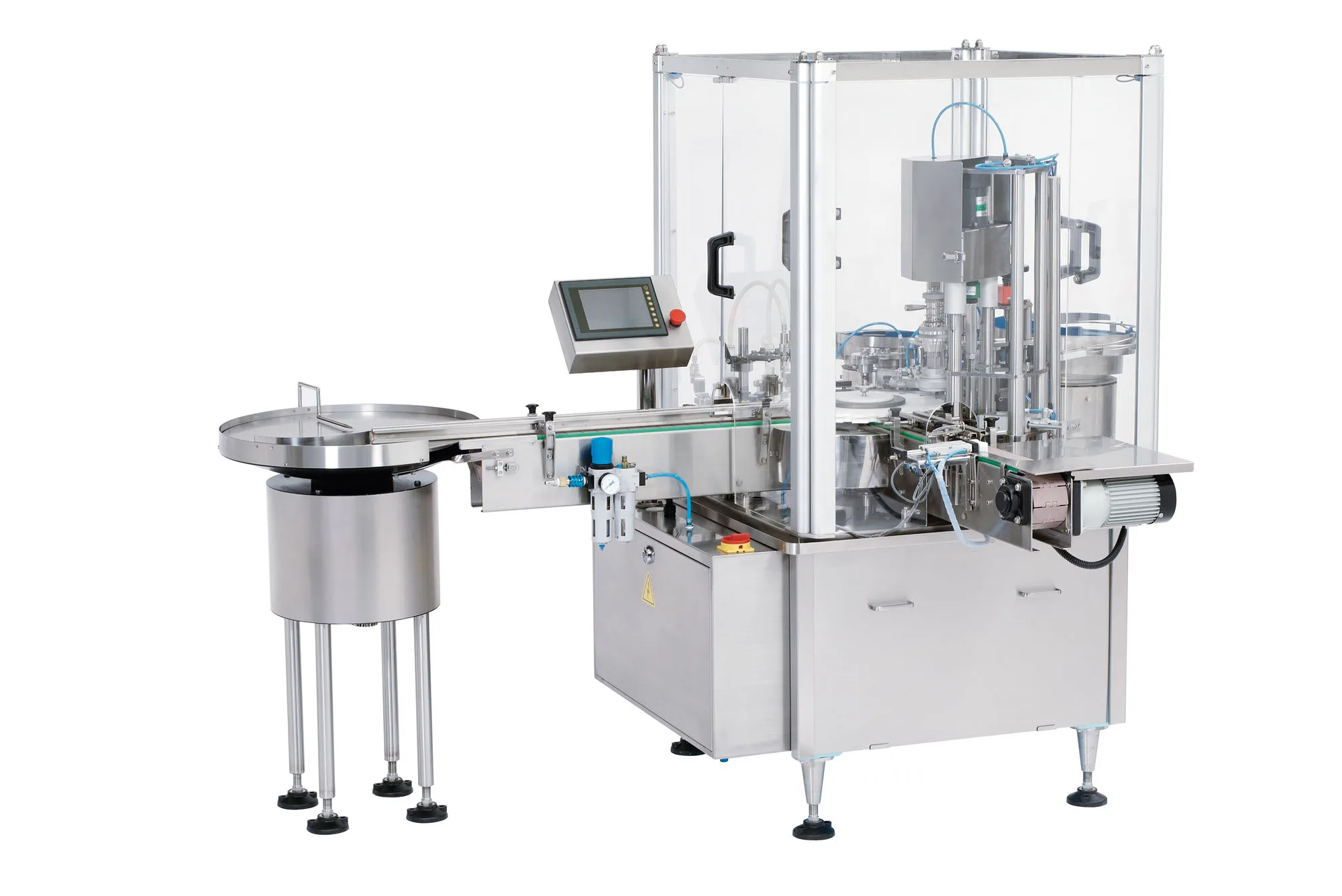

Fully automatic liquid filling,rotary capping line
QB-FSD is specially designed and made for Small dose filling,capping integrated machine for storage Tubes & Cryotubes,EP test tubes,cuvettes. in the industry of IVD(In Vitro Diagnosis). The single/multi doses are filled, sealed and detected in one-time completion. To comply with the IVDrestrictions, Cross-contamination is firmly avoided via one component one heat sealing or sealed in one time after all doses
filled based on the properties of the products
filled based on the properties of the products
* Specialized filling and moving head for different viscosity and foam liquid .
* Applicable for high sensitive and corrosive products filling,capping. Avoid cross contamination.
* Applicable for high sensitive and corrosive products filling,capping. Avoid cross contamination.
* High efficient and compact all-in-one system with personalized solution, advanced technology and minimum space occupation.
* Filling with piston pump or peristaltic pump depends on different liquid characteristics.
* High security process to protect the products.
* Intelligent control to shorten the operation switch and pause time. Minimize the loss of materials.
* Attainable of fully inspection of single component Net weight or multi-components Gross weight.
* O-RABS、C-RABS、Isolator optional.
* Filling with piston pump or peristaltic pump depends on different liquid characteristics.
* High security process to protect the products.
* Intelligent control to shorten the operation switch and pause time. Minimize the loss of materials.
* Attainable of fully inspection of single component Net weight or multi-components Gross weight.
* O-RABS、C-RABS、Isolator optional.
FEATURES AT A GLANCE
Fully Automatic
Compact design, less space occupation
High precision 1%
Easy Maintenance Core moving parts are driven by cam or servo motor，running in smooth,reliable and high efficiency.
GMP complied, the driving parts are covered or at the bottom of the machine.
Module design for quick replacement
Low Power consumption
CNC MANUFACTURING
Focus on each detail
HIGH CALIBRATION
PRODUCT SPECIFICATIONS
No | Item | Data | ||
1 | Power | 7.5KW | ||
2 | Production speed | 100-300PM | ||
3 | Micro Volume | 1-5ml | ||
4 | Multi doses | 8-36 chanels | ||
5 | Dimension | 2000*2000*1800mm | ||
6 | Material | 304/316 | ||
7 | SEALING | Hot sealing capping | ||
8 | Box packaging/label | Optional |
PRODUCT CONFIGURATION
SALES AND SERVICE NETWORK
Successful Project
Project in Shenzhen
Project in India
Project in Beijing
SIMILAR PRODUCTS
FAQ
Q1：Do you provide customized equipment?
A1：Yes, our business is mainly on tailor made machines, because each customer has his own requirement of bottle shape, specific liquid and production speed.
