Щековая дробилка для горнодобывающей техники Высококачественная камнедробилка PEX250 *
- Категории: >>>
- Поставщик: Henan,Yaoyuan,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Overview
Features
1. Simple structure designing, deep crushing chamber, small meshing angle, large stroke, large processing capacity, low energy consumption, and better crushing performance. Using large angle bracket design to make the low chamber stroke larger and higher capacity.
2. Using "Large size bearing" design to make large bearing capacity, longer service life, and safer using.
3. Heavy movable jaw components adopt forged heavy eccentric shaft, high-quality heavy rolling bearing and movable jaw body optimized by finite element analysis, which ensures high impact resistance and stability of movable jaw components. Centralized lubrication system ensure that the bearing grease is not under the danger of polluted, and the lubrication is more convenient, the operation time is longer, and the stability is better.
4. Using mechanical or hydraulic outlet adjustment device, the gasket adjustment corresponding to the double wedge adjustment mode is simpler, safer, faster, and saves downtime.
5. Jaw plate can select different tooth shapes according to different crushing materials, so the crushing effect is better. In order to improve the wear resistance of the jaw plate, a thick guard plate is installed above the movable jaw to avoid material impact and effectively protect the movable jaw body and its internal bearing from damage.
6. The integral cast steel bearing seat structure ensures the complete fit with the frame, avoids unnecessary radial load on the bearing during the fastening of the combined bearing seat, and makes the bearing run more smoothly.
2. Using "Large size bearing" design to make large bearing capacity, longer service life, and safer using.
3. Heavy movable jaw components adopt forged heavy eccentric shaft, high-quality heavy rolling bearing and movable jaw body optimized by finite element analysis, which ensures high impact resistance and stability of movable jaw components. Centralized lubrication system ensure that the bearing grease is not under the danger of polluted, and the lubrication is more convenient, the operation time is longer, and the stability is better.
4. Using mechanical or hydraulic outlet adjustment device, the gasket adjustment corresponding to the double wedge adjustment mode is simpler, safer, faster, and saves downtime.
5. Jaw plate can select different tooth shapes according to different crushing materials, so the crushing effect is better. In order to improve the wear resistance of the jaw plate, a thick guard plate is installed above the movable jaw to avoid material impact and effectively protect the movable jaw body and its internal bearing from damage.
6. The integral cast steel bearing seat structure ensures the complete fit with the frame, avoids unnecessary radial load on the bearing during the fastening of the combined bearing seat, and makes the bearing run more smoothly.

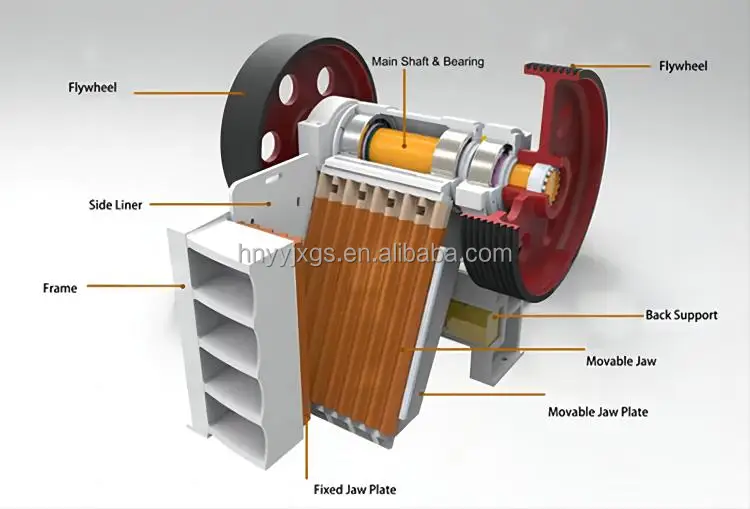

Structure Introduction
The motor drives the belt wheel making movable jaw up and down by eccentric shaft.
When the movable jaw down,the angle between the fixed jaw and movable jaw gets smaller,and the materials can be crushed to reach the crushing target, when the movable jaw rises,the angle between the fixed jaw and movable jaw becomes larger.
The movable jaw plate leaves the fixed jaw plate under the function of drawbar and spring, and then the crushed materials are discharged from the lower outlet of the crushing cavity.
When the movable jaw down,the angle between the fixed jaw and movable jaw gets smaller,and the materials can be crushed to reach the crushing target, when the movable jaw rises,the angle between the fixed jaw and movable jaw becomes larger.
The movable jaw plate leaves the fixed jaw plate under the function of drawbar and spring, and then the crushed materials are discharged from the lower outlet of the crushing cavity.

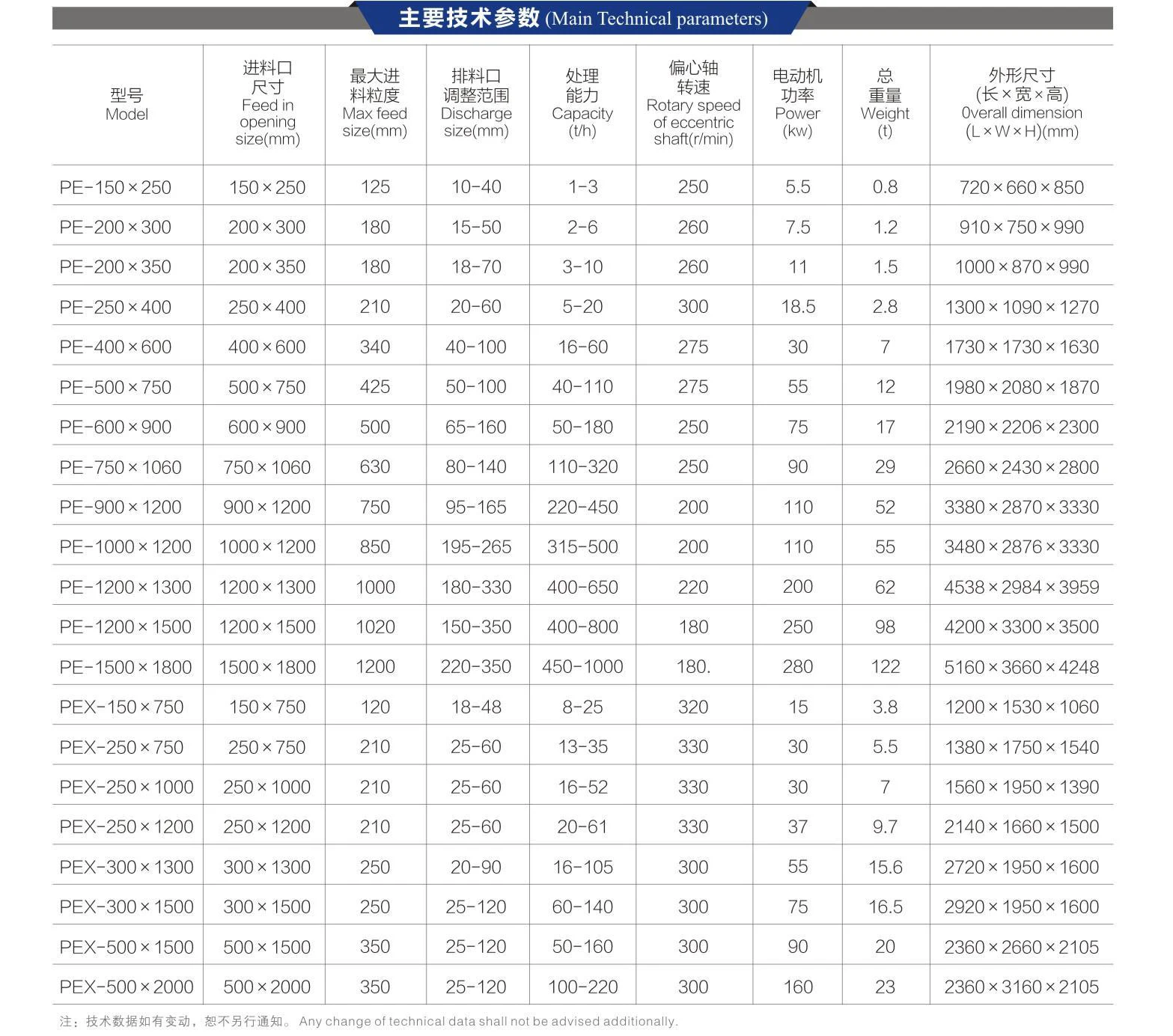

PRODUCT SPECIFICATIONS
Advantages
We will continue to adhere to Quality is our eternal pursuit and pride, create new glories with customers! Welcome visiting and seeking common development.

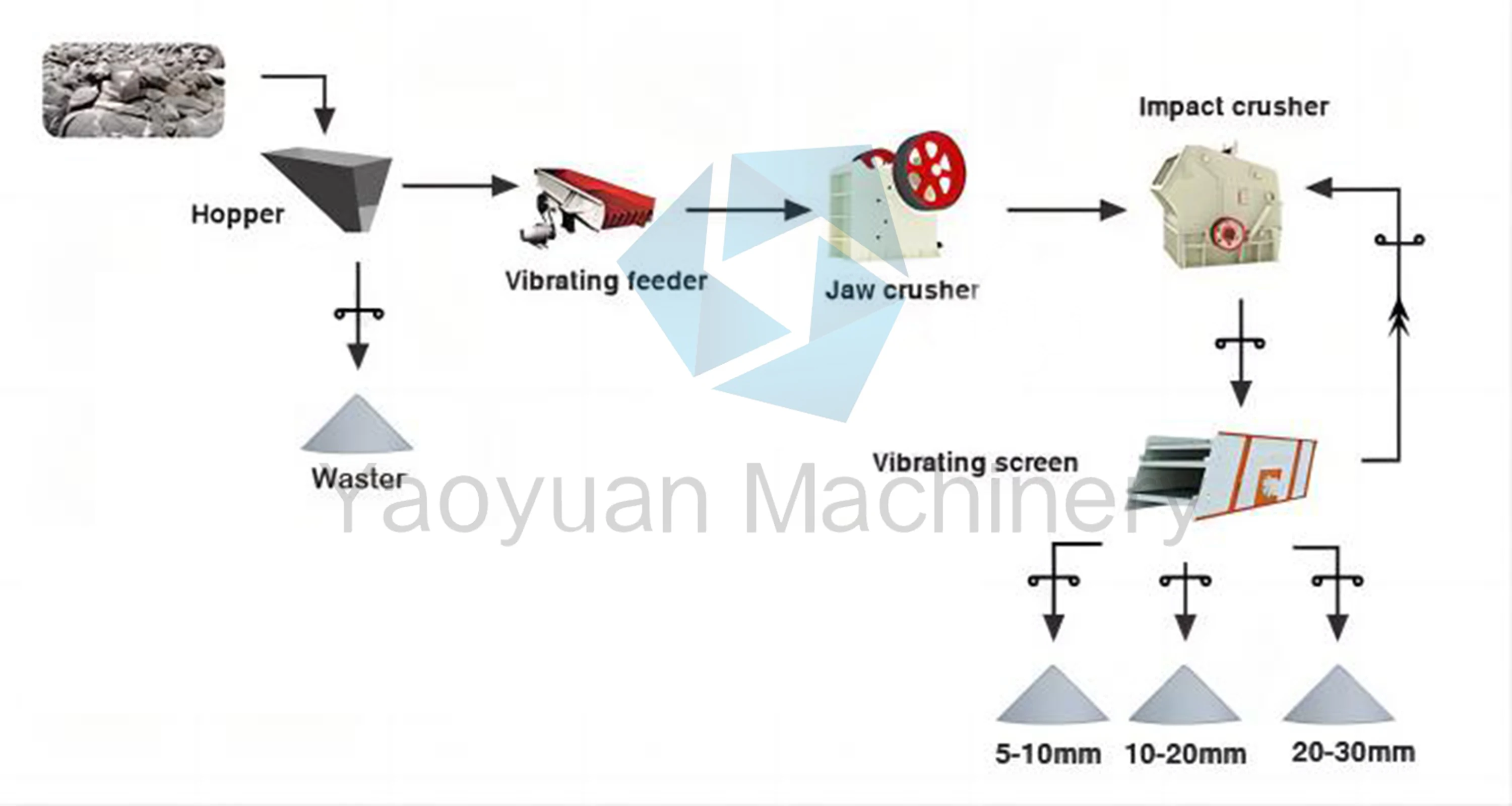

technological process

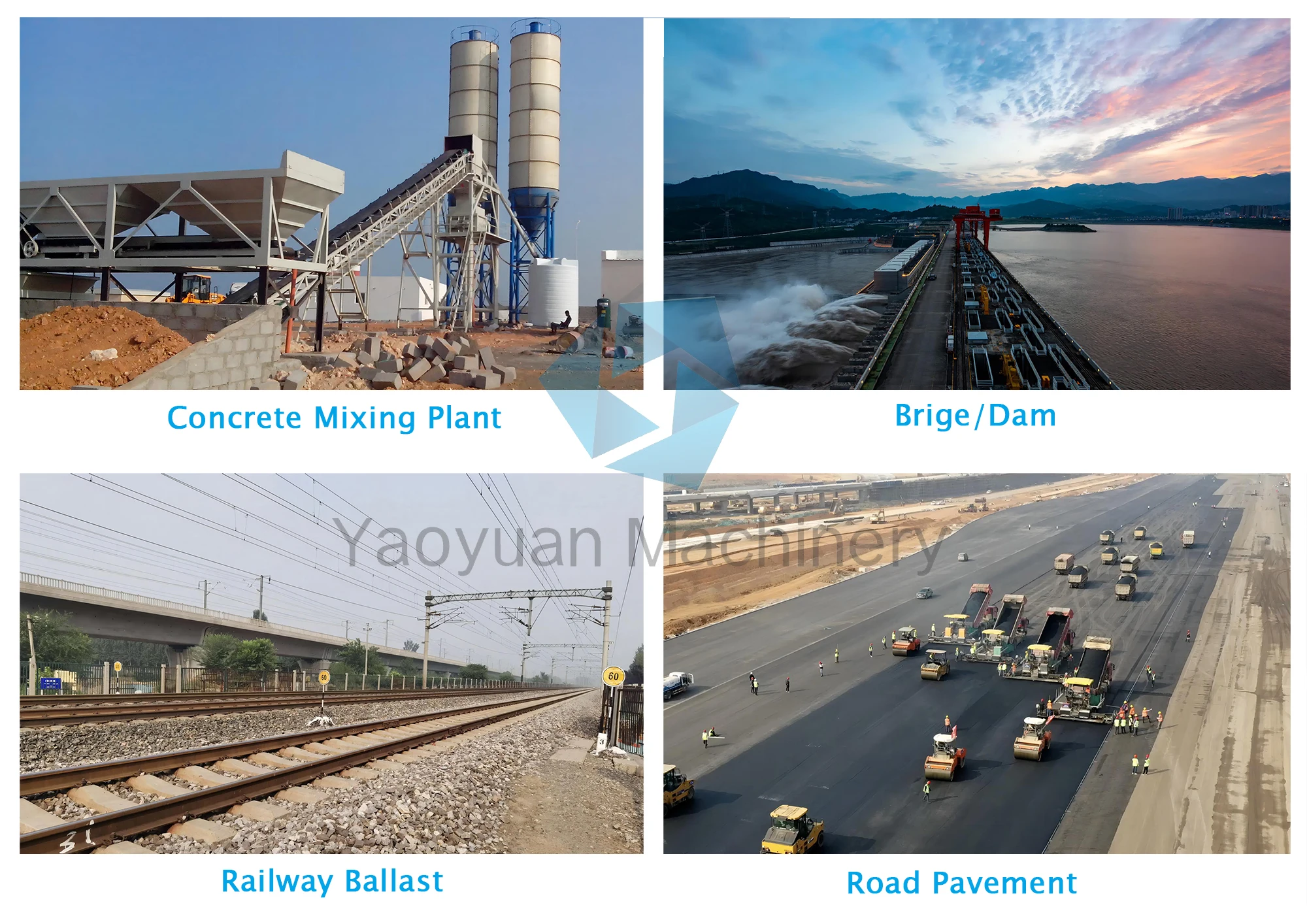

Application
SALES AND SERVICE NETWORK
FAQ
