Features

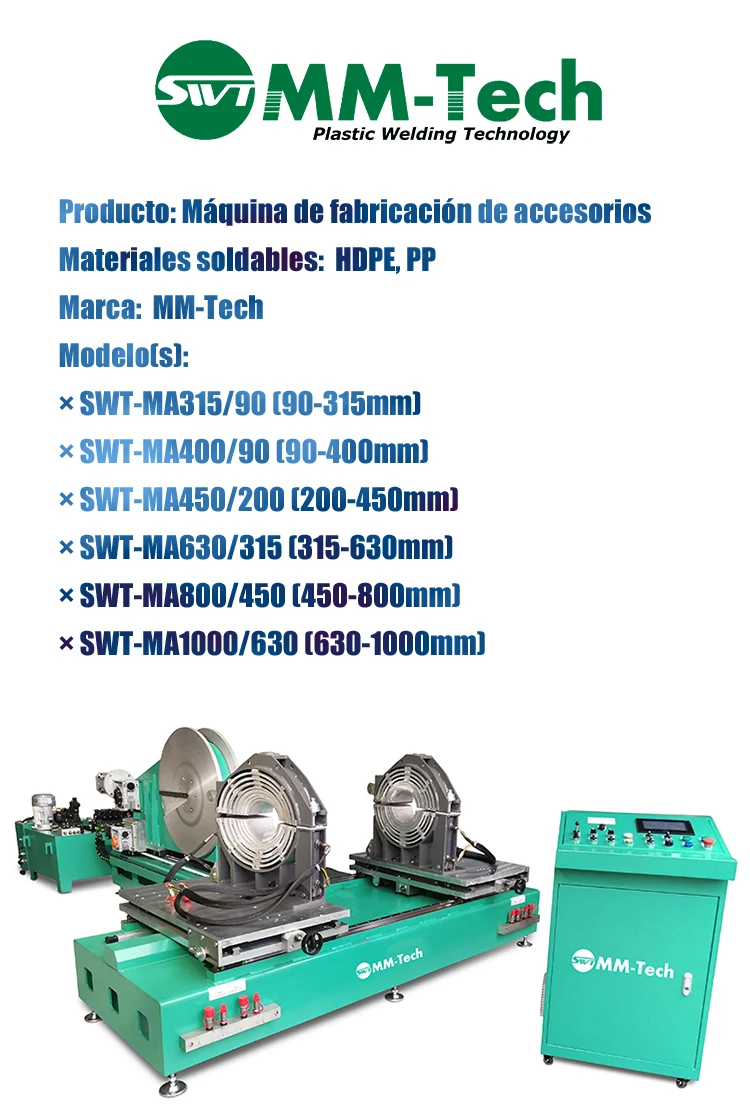

CNC Fitting Fabrication Machine: Versatile, Affordable and Intelligent
CNC fitting fabrication machine is designed to fabricate fittings like elbows, tees crosses, and wye(optional) up to 1200mm. With the help of jaws, it could make different fittings of various sizes.
CNC welding machine could weld plastic materials like HDPE, PP, PVDF.
A operation panel with an automatic control system makes the whole welding process in a simple, efficient, and precise way. After setting the welding data (SDR, Pipe diameter,Standard requirement), the welding machine will start welding automatically, so that the operators could mainly focus on the welding process, stay away from other interference.
And the build-in memory could record the welding process and report it to the operator by transferring the data from operation panel to computer by USB connection, or
automatically read out by connecting a printer.
And the build-in memory could record the welding process and report it to the operator by transferring the data from operation panel to computer by USB connection, or
automatically read out by connecting a printer.
SWT-MA315/90 Fifitting Fabrication Machines Product Details | ||||||
ELBOWS | OD 90MM - 315MM ( 0º - 90º ) | TEES & CROSSES | OD 90MM - 315MM | |||
WYES ( *OPTION ) | OD 90MM - 315MM ( 45º - 60º ) | MATERIALS | HDPE - PP - PPR - PVDF - PVC | |||
RATED POWER | 5.25KW | PISTON AREA | 20.02CM2 | |||
POWER SUPPLY | 380VAC, 3 PHASE, 50/60HZ | TOTAL ABSOREBED POWER | 7.5KW | |||
TOTAL WEIGHT (N.W./G.W.) | 775KG / 942KG | MACHINE DIMENSION | 1350*1350*1370MM | |||
SWT-MA400/90 Fifitting Fabrication Machines Product Details | ||||||
ELBOWS | OD 90MM - 400MM ( 0º - 90º ) | TEES & CROSSES | OD 90MM - 400MM | |||
WYES ( *OPTION ) | OD 90MM - 315MM ( 45º - 60º ) | MATERIALS | HDPE - PP - PPR - PVDF - PVC | |||
POWER SUPPLY | 12.3KW | PISTON AREA | 10.9CM2 | |||
POWER SUPPLY | 380VAC, 3 PHASE, 50/60HZ | TOTAL PACKED IN | 4 PLYWOOD CASES | |||
TOTAL WEIGHT (G.W.) | 1744KG | MACHINE DIMENSION | 1350*1350*1370MM | |||
SWT-MA500/200 Fabrication Fifitting Machines Product Details | ||||||
ELBOWS | OD 200MM - 500MM ( 0º - 90º ) | TEES & CROSSES | OD 200MM - 500MM | |||
WYES ( *OPTION ) | OD 200MM - 500MM ( 45º - 60º ) | MATERIALS | HDPE - PP - PPR - PVDF - PVC | |||
TOTAL POWER | 26KW | POWER SUPPLY | 380VAC, 3 PHASE, 50/60HZ | |||
SWT-MA630/315 Fabrication Fifitting Machines Product Details | ||||||
ELBOWS | OD 315MM - 630MM ( 0º - 90º ) | TEES & CROSSES | OD 315MM - 630MM | |||
WYES ( *OPTION ) | OD 315MM - 630MM ( 45º - 60º ) | MATERIALS | HDPE - PP - PPR - PVDF - PVC | |||
TOTAL POWER | 34.2KW | POWER SUPPLY | 380VAC, 3 PHASE, 50/60HZ | |||
SWT-MA800/400 Fabrication Fifitting Machines Product Details | ||||||
ELBOWS | OD 400MM - 800MM ( 0º - 90º ) | TEES & CROSSES | OD 400MM - 800MM | |||
WYES ( *OPTION ) | OD 400MM - 800MM ( 45º - 60º ) | MATERIALS | HDPE - PP - PPR - PVDF - PVC | |||
TOTAL POWER | 54.5KW | POWER SUPPLY | 380VAC, 3 PHASE, 50/60HZ | |||
SWT-MA1200/630 Fabrication Fifitting Machines Product Details | ||||||
ELBOWS | OD 630MM - 1200MM ( 0º - 90º ) | TEES & CROSSES | OD 630MM - 1200MM | |||
WYES ( *OPTION ) | OD 630MM-1200MM ( 45º - 60º ) | MATERIALS | HDPE - PP - PPR - PVDF - PVC | |||
TOTAL POWER | 71.5KW | POWER SUPPLY | 380VAC, 3 PHASE, 50/60HZ | |||
Why Choose Us
1)Cooperation with world-renowned brands ensures stable quality
1. Core elements PLC and touch screen come from Mitsubishi/Japan, or Siemens/Germany
2. Electricity components are from Schneider/Germany
3. Hydraulic valves are from Taiwan Yuken/China
4. Proportional valve comes from HydraForce/USA
5. Heater anti-stick Teflon is from DuPont/USA
2. Electricity components are from Schneider/Germany
3. Hydraulic valves are from Taiwan Yuken/China
4. Proportional valve comes from HydraForce/USA
5. Heater anti-stick Teflon is from DuPont/USA
2)Advanced product philosophy and considerate service eliminate your worries on operating the machines
1. Heater movement empowered by gear and rack, stable and long life service
2. Trimmer movement empowered by electric cylinder, stable/faster/efficient
3. The trimmer plate is carved from aluminum (number 6061) plate, which has high strength, not easy to deform, and has a long life
4. Design of two blades on one side plate makes milling faster and working more efficiently
5. Powder spraying the whole machine to make it look more delicate
6. 2years extended warranty years gives more confidence in the service
2. Trimmer movement empowered by electric cylinder, stable/faster/efficient
3. The trimmer plate is carved from aluminum (number 6061) plate, which has high strength, not easy to deform, and has a long life
4. Design of two blades on one side plate makes milling faster and working more efficiently
5. Powder spraying the whole machine to make it look more delicate
6. 2years extended warranty years gives more confidence in the service
