shantui 100HP bulldozer DH10
Product Paramenters
Power System
• The installed electronic control engine conforms to China-III/EU StageⅢA emission regulation and features stronger power and
higher energy-saving and environmental friendliness. The fuel system with three-stage filter guarantees good adaptability to
low-quality diesel in Southeast Asian markets.
• Hydrostatic drive optimization technology is applied to achieve maximum working efficiency and most reasonable fuel economy:
Control system
* The double-module (Function and safety) controller architecture verifies with each other to achieve higher safety and
reliability.
• The malfunction self-diagnosis function is provided to accurately indicate the malfunction cause and orientation and shorten
the downtime.
• The service software with distinct access hierarchy features high simpleness and practicability and easy learning and
understanding.
Driving/Riding Environment
• The integral sealed cab with 8-point shock-absorbing mechanism features low noise and vibration, large space, and good vision.
• The spacious doors and windows allow the operator to clearly view all corners of the blade and the integrated ROPS remarkably
increases the side view of the machine.
• The suspended single accelerator pedal features small volume, large foot space, and high operation comfort.
• The mechanically cushioned seat offers large adjustment range in both longitudinal direction and backrest position. The armrests
feature comfortable texture feel and large area. The ergonomic joysticks provide most comfortable operating experiences for the
driver.
Working adaptability
* The machine adopts double-circuit electronically controlled hydrostatic drive system to ensure good load self-adaptability,
loaded and in-situ steering capability, stepless speed regulation, and high flexibility and efficiency and realize outstanding
construction performance in narrow sites.
• The chassis system features long ground length, high ground clearance, stable driving, and excellent trafficability. The
standard traction frame and the optional three-shank ripper guarantee high operating capacity. The standard LED working lamps
of higher illumination intensity improve the illumination capability during nighttime operations to achieve higher safety and
reliability.
Easy maintenances
• The structural parts inherit the excellent quality of mature products.
• The electric harnesses adopt seamless corrugated pipes and deconcentrators for branching, featuring high protection grade.
• The core electric and hydraulic parts adopt imported products, featuring stable and reliable quality and extremely high
reliability.
• The modular structure design of the machine features easy disassembling and assembling, simple repairs, low failure rate, and
easy maintenances.
Operating performance
* The traveling is operated by single electronic control joystick and the working device is operated by single pilot joystick,
featuring flexible, handy, and comfortable operations.
• The installed electronic control engine conforms to China-III/EU StageⅢA emission regulation and features stronger power and
higher energy-saving and environmental friendliness. The fuel system with three-stage filter guarantees good adaptability to
low-quality diesel in Southeast Asian markets.
• Hydrostatic drive optimization technology is applied to achieve maximum working efficiency and most reasonable fuel economy:
Control system
* The double-module (Function and safety) controller architecture verifies with each other to achieve higher safety and
reliability.
• The malfunction self-diagnosis function is provided to accurately indicate the malfunction cause and orientation and shorten
the downtime.
• The service software with distinct access hierarchy features high simpleness and practicability and easy learning and
understanding.
Driving/Riding Environment
• The integral sealed cab with 8-point shock-absorbing mechanism features low noise and vibration, large space, and good vision.
• The spacious doors and windows allow the operator to clearly view all corners of the blade and the integrated ROPS remarkably
increases the side view of the machine.
• The suspended single accelerator pedal features small volume, large foot space, and high operation comfort.
• The mechanically cushioned seat offers large adjustment range in both longitudinal direction and backrest position. The armrests
feature comfortable texture feel and large area. The ergonomic joysticks provide most comfortable operating experiences for the
driver.
Working adaptability
* The machine adopts double-circuit electronically controlled hydrostatic drive system to ensure good load self-adaptability,
loaded and in-situ steering capability, stepless speed regulation, and high flexibility and efficiency and realize outstanding
construction performance in narrow sites.
• The chassis system features long ground length, high ground clearance, stable driving, and excellent trafficability. The
standard traction frame and the optional three-shank ripper guarantee high operating capacity. The standard LED working lamps
of higher illumination intensity improve the illumination capability during nighttime operations to achieve higher safety and
reliability.
Easy maintenances
• The structural parts inherit the excellent quality of mature products.
• The electric harnesses adopt seamless corrugated pipes and deconcentrators for branching, featuring high protection grade.
• The core electric and hydraulic parts adopt imported products, featuring stable and reliable quality and extremely high
reliability.
• The modular structure design of the machine features easy disassembling and assembling, simple repairs, low failure rate, and
easy maintenances.
Operating performance
* The traveling is operated by single electronic control joystick and the working device is operated by single pilot joystick,
featuring flexible, handy, and comfortable operations.
Parameter name | DH10-C2 XL (Extended version) | DH10-C2 LGP(Super-wetland version) |
Performance parameters | ||
Operating weight (Kg) | 9680kg/21341lb (With traction frame) | 10140kg/22355lb (With traction frame) |
Ground pressure (kPa) | 44.4 | 34 |
Engine | ||
Engine model | QSF3.8 | QSF3.8 |
Rated power/rated speed (kW/rpm) | 86/2200 | 86/2200 |
Overall dimensions | ||
Overall dimensions of machine (mm) | 4442*2860*2885 | 4442*3200*2885 |
Driving performance | ||
Forward speed (km/h) | 0~9km/h(5.6mph) | 0~9km/h(5.6mph) |
Reversing speed (km/h) | 0~9km/h(5.6mph) | 0~9km/h(5.6mph) |
Chassis System | ||
Center distance of track (mm) | 1650 | 1790 |
Width of track shoes (mm) | 460 | 630 |
Ground length（mm） | 2320 | 2320 |
Tank capacity | ||
Fuel tank (L) | 197 | 197 |
Working device | ||
Blade type | PAT | PAT |
Digging depth (mm) | 450 | 450 |
Ripper type | Three-tooth ripper | Three-tooth ripper |
Ripping depth (mm) | 340 | 340 |

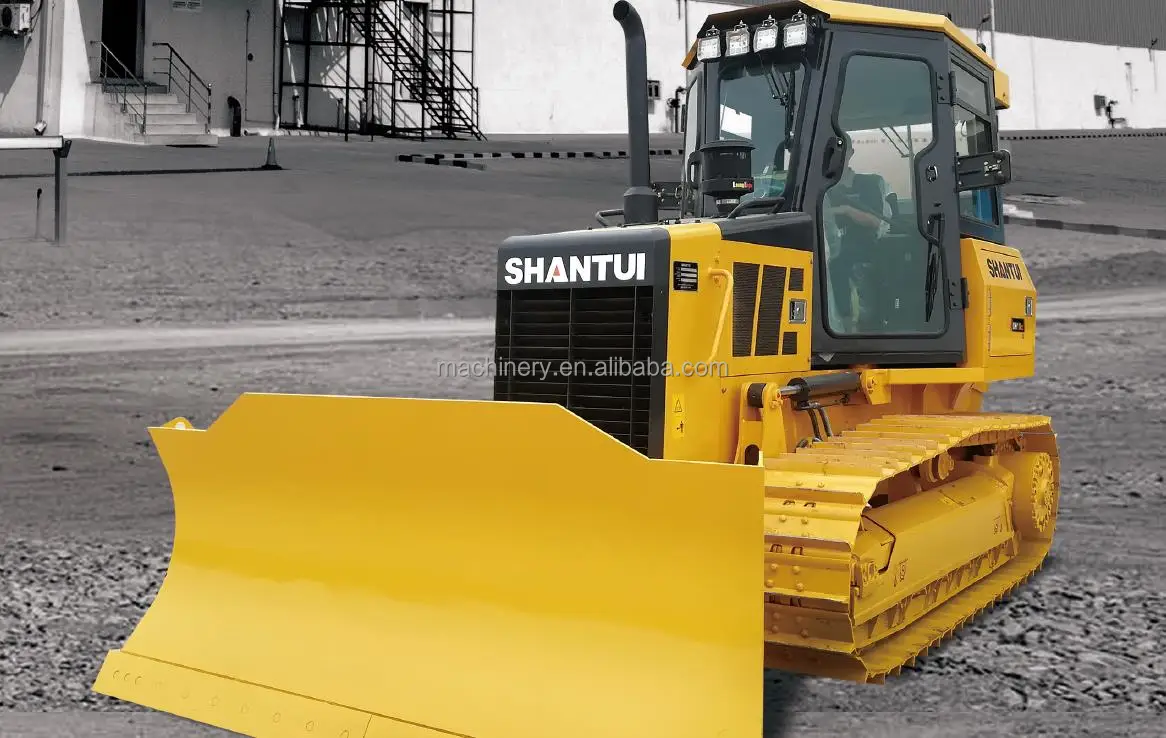

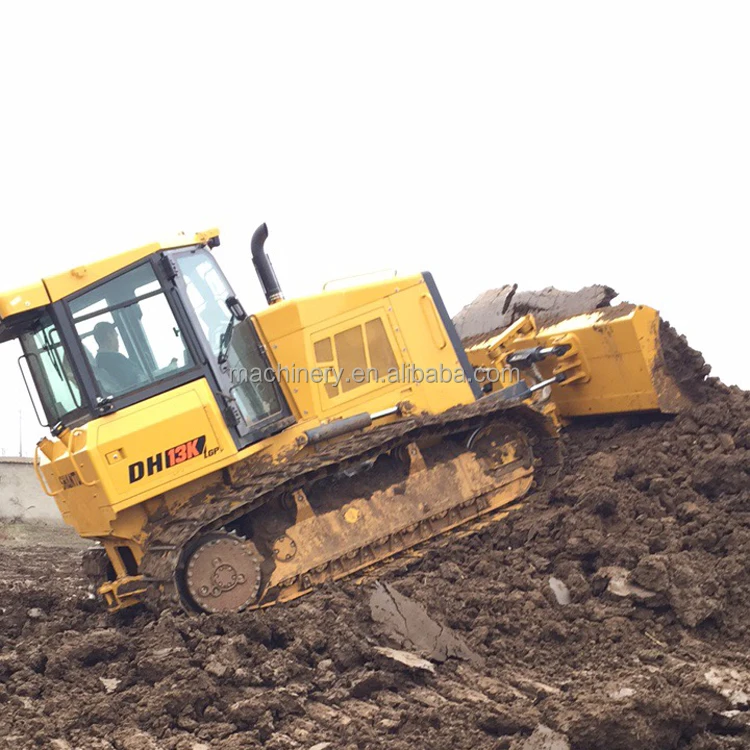

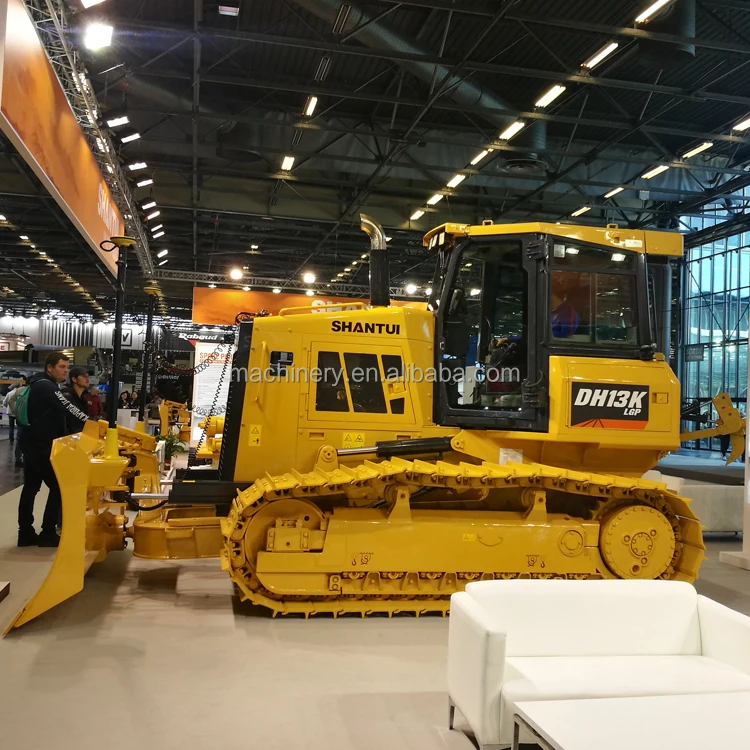

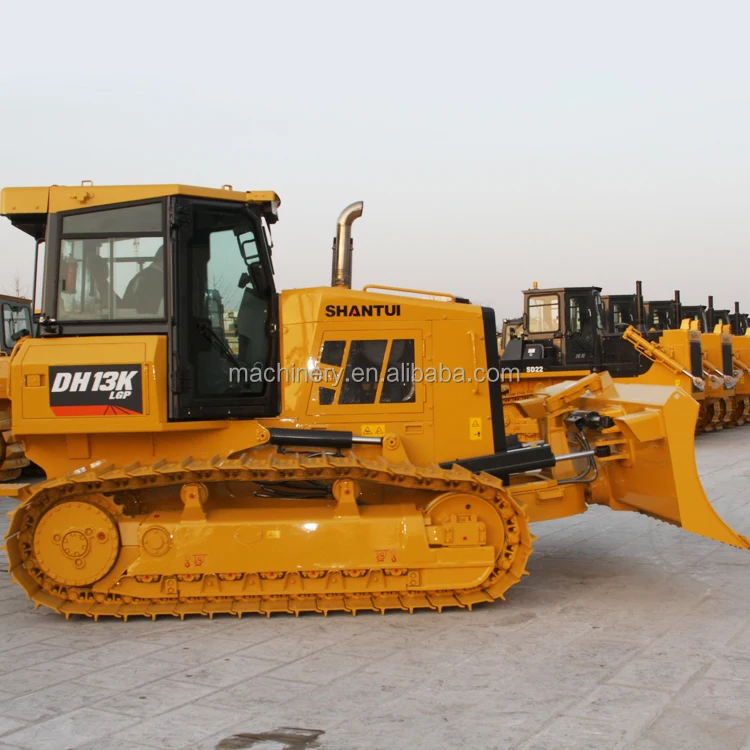

Details Images
