Winnix HYR836 UHF RFID Reader delivers the performance, quality, and reliability necessary for maximum visibility of tagged inventory and assets. Able to maintain high read rates regardless of RF noise or interference as the readers adapt automatically for optimal functionality, HYR830 readers are a powerful piece of item visibility platform solutions.
Item | parameters | unit | remark |
operating voltage | 12 | v | |
Maximum Current | 800 | mA | |
Standby current | ≤100 | mA | |
Frequency range | 840-960 | MHZ | |
Default operating frequency | Frequency hopping | MHZ | Frequency interval 250KHz |
Channel bandwidth | 250 | KHZ | |
Frequency hopping speed | ≤2 | s | |
Maximum power output | 31 | dBm | |
Step interval | 1 | dB | 5-30dBm adjustable bv software |
protocol support | EPC C1 G2/ISO18000-6C | ISO18000-6D avaible for customization | |
Maximum reading | 24 | meter | |
multi-tag read rate | >400/s |
HYR830 adopts Impinj R2000 module, maximum power output is 31dbm.
4 RP TNC ports, with an 12dbi circular polarized antenna, reading distance can
reach 24 meters.
Reading speed is 400 tags/sec.
Support LBT function.
Support dense reader working mode(DRM)
8 LED lights, real-time display working status.

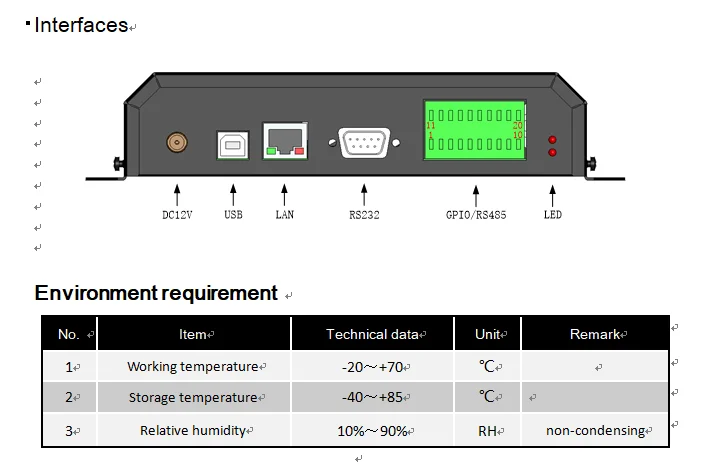

Many external ports, Including network interface, RS232,GPIO_IN*4,
GPIO_OUT*4,RS485,wiegand,CAN,USB,WIFI, can meet different client's
requirement.
Excellent read and write performance, it is suitable for complicated environment

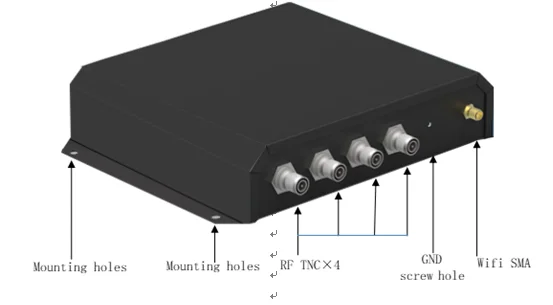

4 RP TNC Female Connectors
Wifi Connector
RS232
GPIO
Ethernet
12V DC power
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Technical Support
* Engineers available
Packaging | ||
Size | 33 (L) * 26 (W) * 9 (cm) | |
Weight | 2.5 KG | |
Packaging Details | The normal package is Carton box(Size: L*W*H). |
