Пластиковый погрузчик для кофейных
- Категории: >>>
- Поставщик: Dongguan,Excellence,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

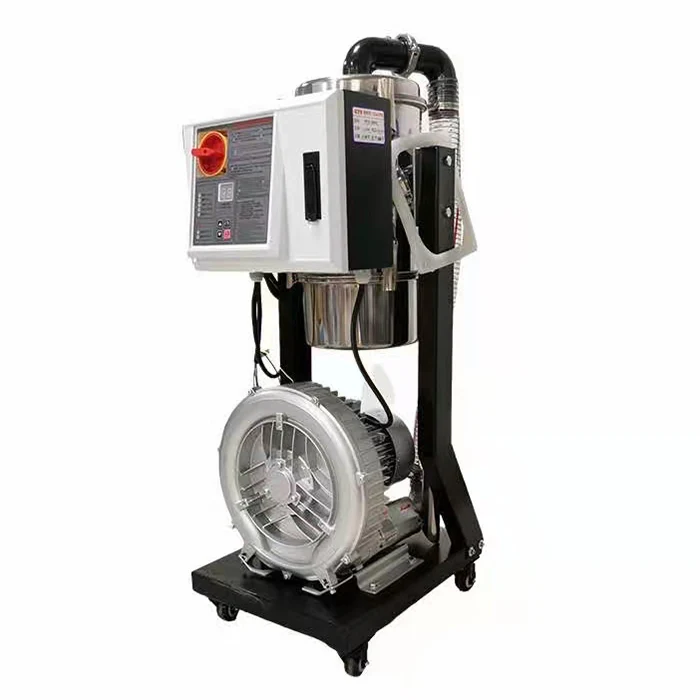

AL series automatic vacuum hopper loader is widely used in the raw material conveying of plastic and rubber, food and chemical industrial.
There are two kind of structure - integral type and separation type with totally 5 models: AL-300G, AL-400G, AL-700G, AL-800G and AL-900G.
Plastic

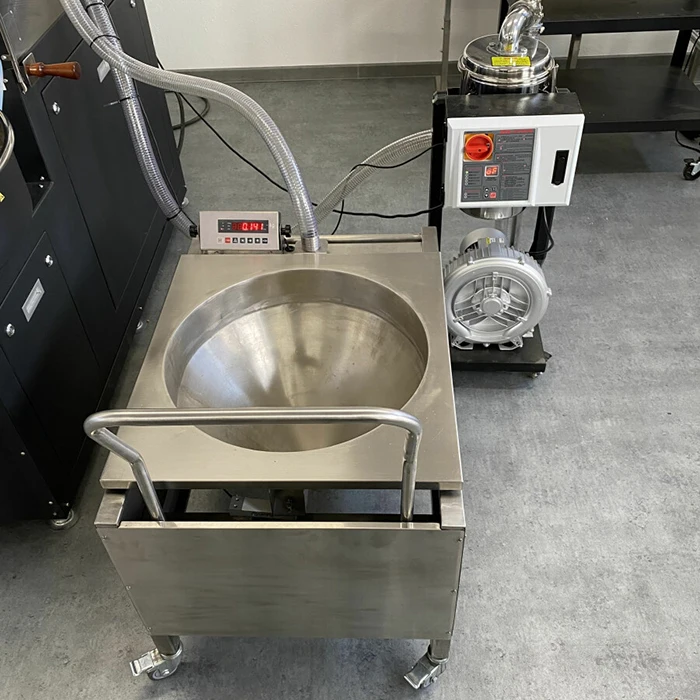

Bean
Grain
Specification
Model | Motor | Conveying ability | Lift | Hopper volume | Diameter of pipe | Size | Weight | ||||
Type | Specification | Machine | Package | ||||||||
AL-300G | Carbon brush | 220v/3Φ 1.5hp | 350kg/h | 4m | 7.5L | Φ38 | 206*330*545 | 370*360*640 | 14kg | ||
AL-400G | Induction | 380v/3Φ 1hp | 400kg/h | 4m | 7.5L | Φ38 | 206*330*670 | 430*440*730 | 26kg | ||
AL-700G | Carbon brush | 220v/3Φ 1.5hp | 400kg/h | 4m | 7.5L | Φ38 | 365*295*540 | 700*340*580 | 25kg | ||
AL-800G1 | Induction | 380v/3Φ 1.5hp | 550kg/h | 4m | 7.5L | Φ38 | 445*375*625 | 740*410*710 | 51kg | ||
AL-800G2 | Induction | 380v/3Φ 2hp | 700kg/h | 5m | 7.5L | Φ38 | 445*375*625 | 740*410*710 | 53kg | ||
AL-900G1 | Induction | 380v/3Φ 1.5hp | 550kg/h | 4m | 7.5L | Φ38 | 420*470*1080 | 420*470*1080 | 60kg | ||
AL-900G2 | Induction | 380v/3Φ 2hp | 700kg/h | 5m | 7.5L | Φ38 | 420*470*1080 | 480*520*1200 | 65kg | ||
Appearance

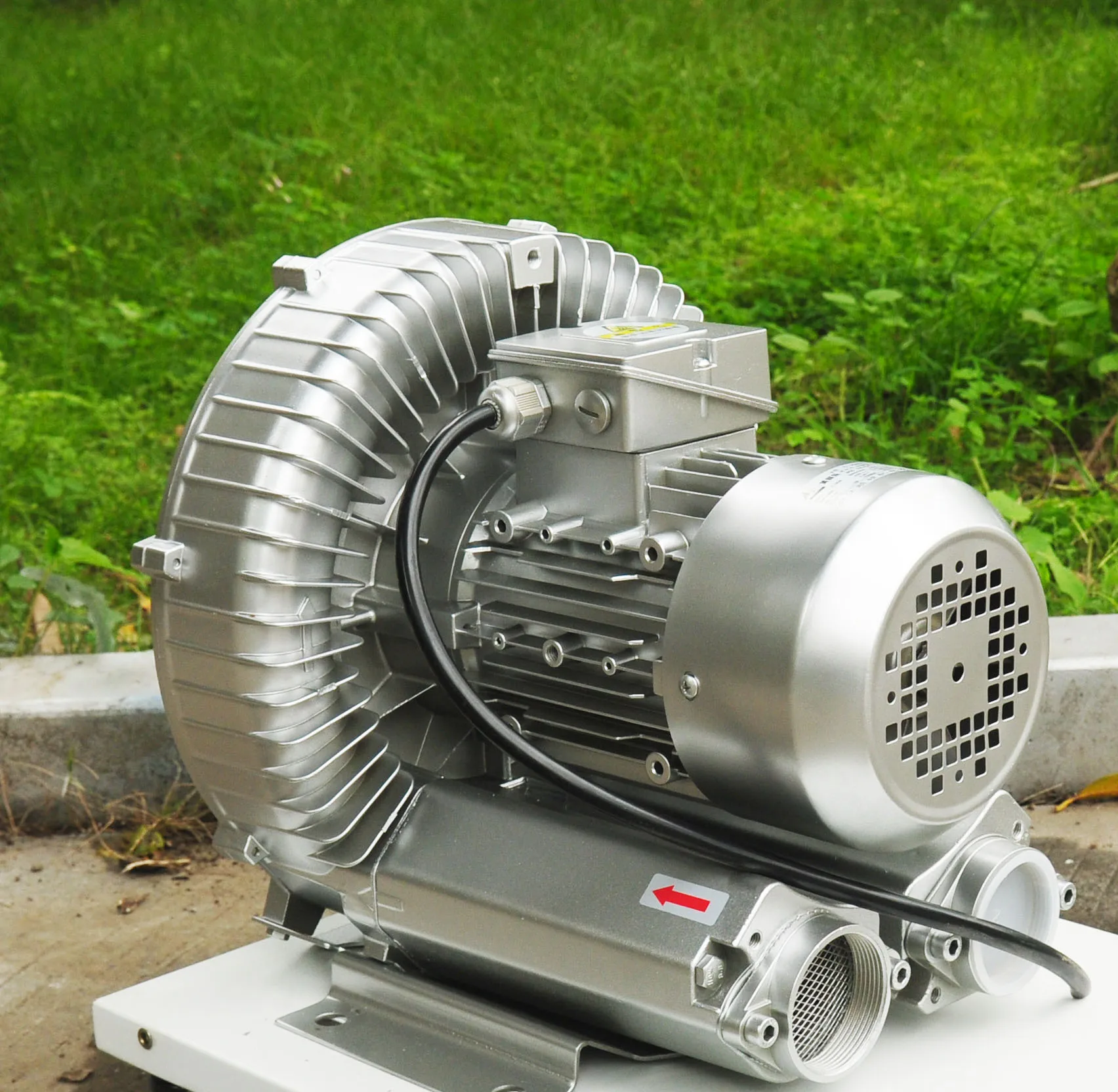

Blower
High performance blower provides strong suction force with low noise.
Electrical appliance
Brand electrical components and PCB board ensure the reliable and durable for life time.
Sensor hopper
For option
Fretting hopper

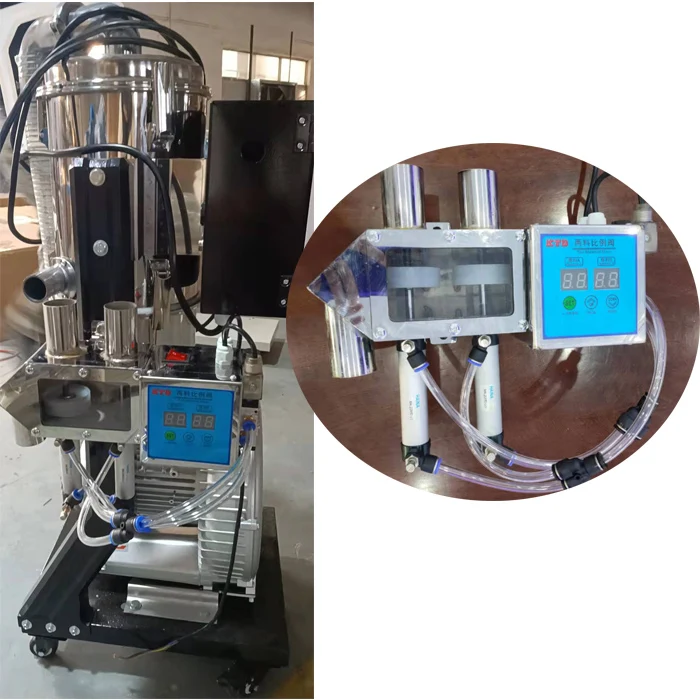

Ratio valve
It can load original pellet and recycled pellet(or two types of pellets) by setting the time of ratio valve.

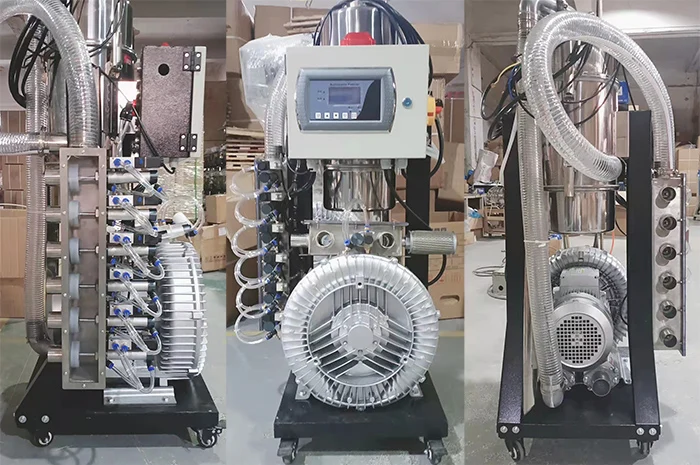

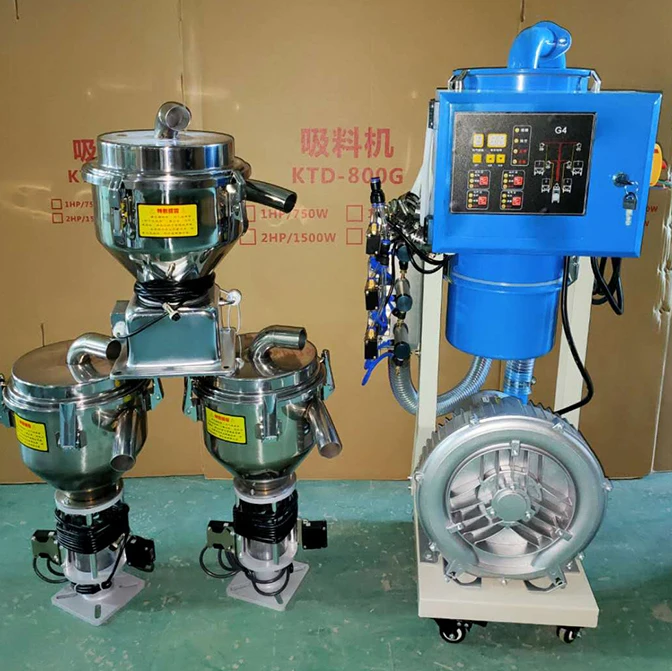

One to multi stage
It can serve multi(up to 6) injection machine through dispense valve, enhance the production efficiency.
1、Q: Are you a factory or trade company?
A: We are factory established in 2006 with more than 50 staffs.
2、Q: What’s the MOQ？
A:Only 1SET.
A:Only 1SET.
3、Q: Do you accept 0EM/ODM?
A: Yes, we accept OEM/ODM according customer’ s requirement.
4、Q:Do you inspect your product 100% before shipment?
A: We have strict quality system through the entire process of production, include in- process inspection and final inspection to make sure al1 products delivered to our customer are qualified.
5、Q:How 1ong is the delivery time?
A: A: We have stocks for many models within 3 days for shipment. It depends on the mode1s and quantities for those out of stock, usua11y the 1ead time is 5-20 days.
6、Q: What’ s the payment terms？
A: When the amount is 1ess than $1000, 100% in advance, and when more than $1000, 30% deposit,70% balance before shipment.
7、Q: How about the warranty?
A: We provide spare parts free within warranty of one year due to qua1ity issues. Expired the warranty, we charge the cost price for replacement parts.
8、Q: And what’ s the after -sales service?
A: We provide video technica1 support and online support, as well as service on site available.
