Product Application


Application:

YC-015 mini Spray dryer (lab spray dryer) can be used in a wide range of applications where the production of a free-flowing powder sample is required.This technique has successfully processed materials in the following areas:

Oxide • Blood • Polymers and Resins

Beverages • Flavours & Colourings

Milk & Egg Products • Plant & Vegetable Extracts

Pharmaceuticals • Heat Sensitive Materials

Plastics • Perfumes • Dyestuffs

Ceramics & Advanced Materials

Soaps & Detergents •Textiles

Foodstuffs • Adhesives

Bones, Teeth & Tooth Amalgam and many others








SPECIFICATIONS OF YC-015 LAB SPRAY DRYER
material
machine body
/
SUS 304 stainless steel
atomizer
/
SUS 316 stainless steel
Drying chamber
/
high borosilicate glass
main parameters
capacity
ml/hr
1500-2000
mini. Sample
ml
30-50
power
kw
3.5
system
inlet temperature
°C
30-250
outlet temperature
°C
30-140
drying time
s
1-1.5s


Details Images



Machine Parts
Name: Touch Screen
Brand: Delta
Original: Taiwan
Dual control modes of fully automatic control and manual control are available. During the entire experimental process, the color
LCD touch screen animation display is available.




Machine Parts

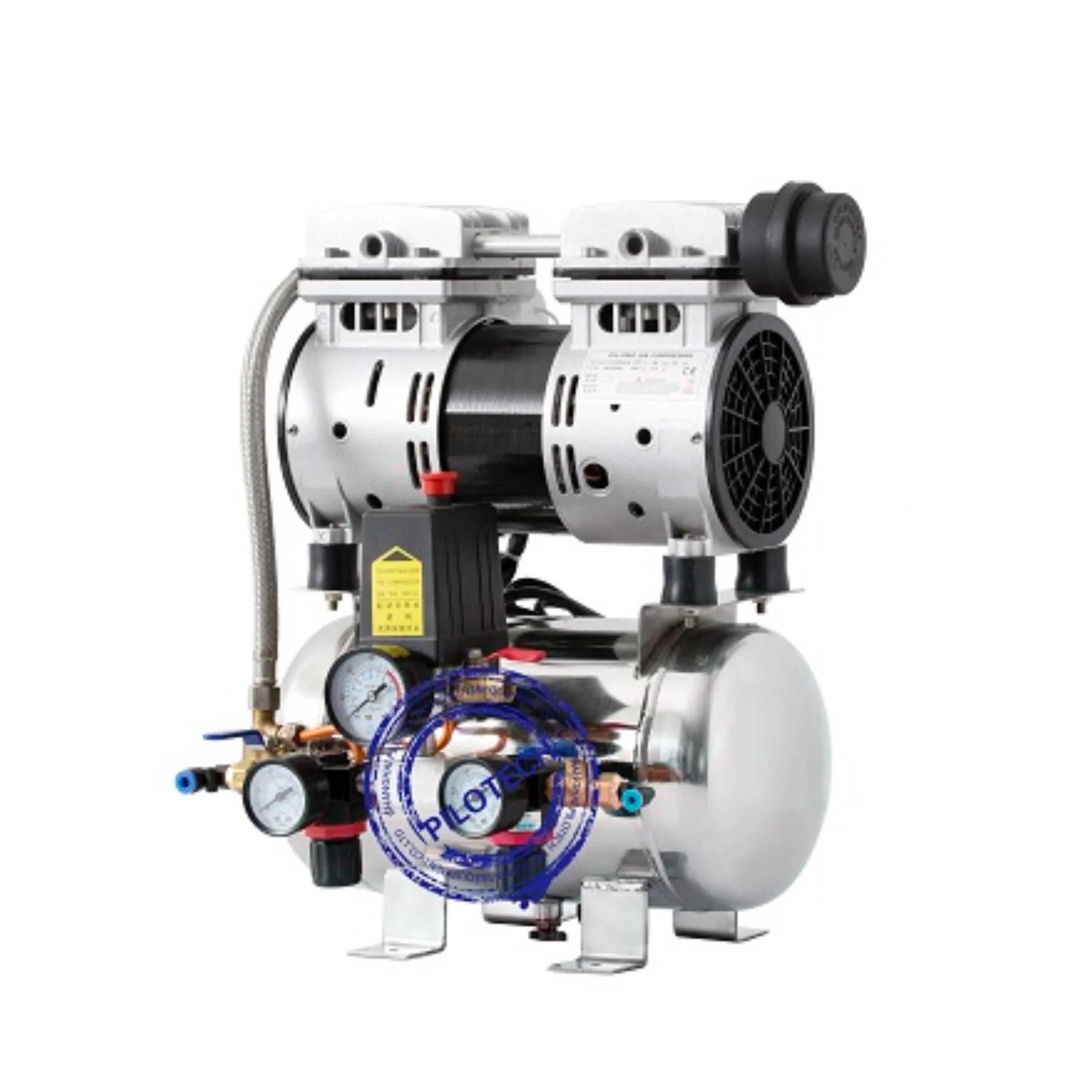

Name:Air compressor
Air Cylinder Material: SUS 304 stainless steel
Characteristic:
The air compressor is oil-free. On the whole, the air cylinder of this kind is made of iron completely. As time goes by, it is
liable to corrosion because of water steam. To address the problem, we switched to 304-stainless steel. So no problem will be
presented in any length of time.




Machine Parts
Name: Drying Chamber, Cyclone separator, collect pipe, collect tank
Material: high borosilicate glass
Characteristic: high temperature resistance, easy to view the process of drying




Machine Parts

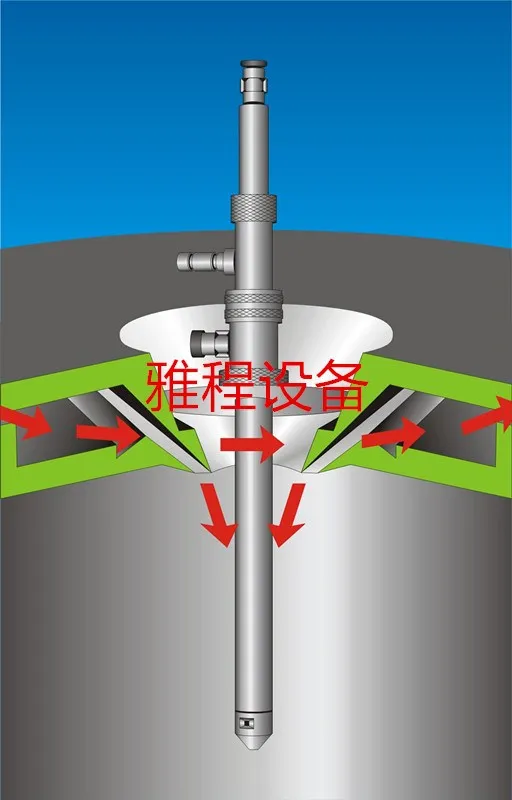

Name: Spray Head
Material:SUS316 stainless steel
Characteristic:
The spray head is a concentric one. It guarantees no eccentricity during atomization that may lead to spraying to the bottle wall.
The spray head can move up and down after installed to facilitate the adjustment of the atomization position to improve the spray
drying effect.


Our service


Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.


Product Advantages


1.Two modes of run: Automatic-mode, and Eye-monitored mode for the purpose of easily controlling experimental process . PLC controller, LCD touch panel control fascia with flow path of system. Using proface touchable interface display operation, operator can control temperature, airflow volume, air pressure,pump speed and de-blocker frequency.

2.Spray chamber, cyclone separator, receiving tank are all made of Borosilicate glass which can resist strong acid/alk li, high temperature. It can work in a no-pollution and stable environment, and the whole process can be inspected. All the spare parts are easy to install and wash.

3.Made of SUS-316 Stainless steel. Easy operating.

4.To assure accurate temperature control and easy parameter adjusting, YC-015 applies PID.

5.A filter has been equipped to the inlet unit to prevent the sample from contamination .

6.The self-priming peristaltic pump delivers the sample liquid from a container through a small diameter jet into the main chamber to avoid secondary pollution.. To make sure the process conducted steady and smoothly, magnetic agitator is optional to make the solution well mixed.

7.Narrow size distribution of particles.

8.Automatic de-blocking device prevents the nozzle from becoming blocked and variably controlled.

9.The air compressor is no oil and don't pollute compress air. The power from receiving tank has a good flow. The sound is low than 60db, and following the GMP understands.

10. Supplied complete and ready for most spray drying applications.

11.Automatic de-blocking device prevents the nozzle from becoming blocked and variably controlled.

12. Equipped with air filter to remove and collect fine particle s in exhausted air.



Certifications






Packing & Delivery


FAQ


Q1. Which kind of products do you have?
A: Our main products are: mini spray dryer, mini UHT sterilizer, lab multi-functional extracting tank, laboratory Inert Loop spray dryer, laboratory low-temperature spray dryer (vacuum spray dryer), laboratory spray freeze dryer, laboratory spray
granulator(spray drying & spray granulating all-in-one) as well as small and pilot composite production line for drinks, milk,
yogurt and powder.

Q2.Do all the products have operating interface and operating manual in English?
A:Yes, all our equipment provide operation interface in English, and if necessary, we can also provide the user's native language,
and all products are available in English operating instructions; if necessary, we can also provide the user's desired language version. In addition, there are are operating videos for our products for the convenience of customers to use.

Q3. Do you have E-catalogue?
A: Yes, you can send your inquiry to our email, we will send it to you ASAP.

Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. How is the sales service of company's products?
A: We offer one-year warranty for all the products, and for products within the warranty period, we provide free services for all non-human damages. After the warranty expires, we will only pay the cost.

Q6. How is the stability and durability of the company's products?
A: The company has been established for 10 years, and 90 percent of products have been adopted in Chinese colleges a
universities. The first produced products have still used by customers currently, and the products are very durable. In China, before the purchase of equipment, many teachers in the university will carefully listen to the views of colleagues on usage.
Pilotech Equipment has good performance and stability and achieved a good reputation, and the purchases of numerous new customers are recommended by old customers.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.

Q9:How can I track the whole shipping process?
We will send you a BL tracking number.you can track the whole shipping process on the website.



Contact


Shanghai Pilotech Instrument & Equipment Co., Ltd
No.86 Yuxiu Rd. Songjiang District, Shanghai, P.R.C 201600
Web: http://www.shpilotech.com
Tel: 0086-21- 51082915
Fax: 0086-21-51069385
E-mail: sabrina@pilotplant.cn
Phone/Whatsapp:+86 15872402951
